About this plan
This compact and efficiently designed ground floor layout, measuring approximately 7 by 9 meters, offers a harmonious blend of functionality and comfort. The plan includes two cozy bedrooms, a well-appointed bathroom, a practical kitchen, and a welcoming living room.
The living room serves as the heart of the home, furnished with a sofa and two chairs, ideal for relaxation and social gatherings.
Adjacent to the living area is the kitchen , featuring a stove, sink, and a dining table with two chairs—perfect for casual meals and daily routines.
The bathroom is thoughtfully arranged with a toilet and shower, ensuring convenience without compromising space.
Each bedroom is equipped with a bed and wardrobe, providing a restful retreat and ample storage.

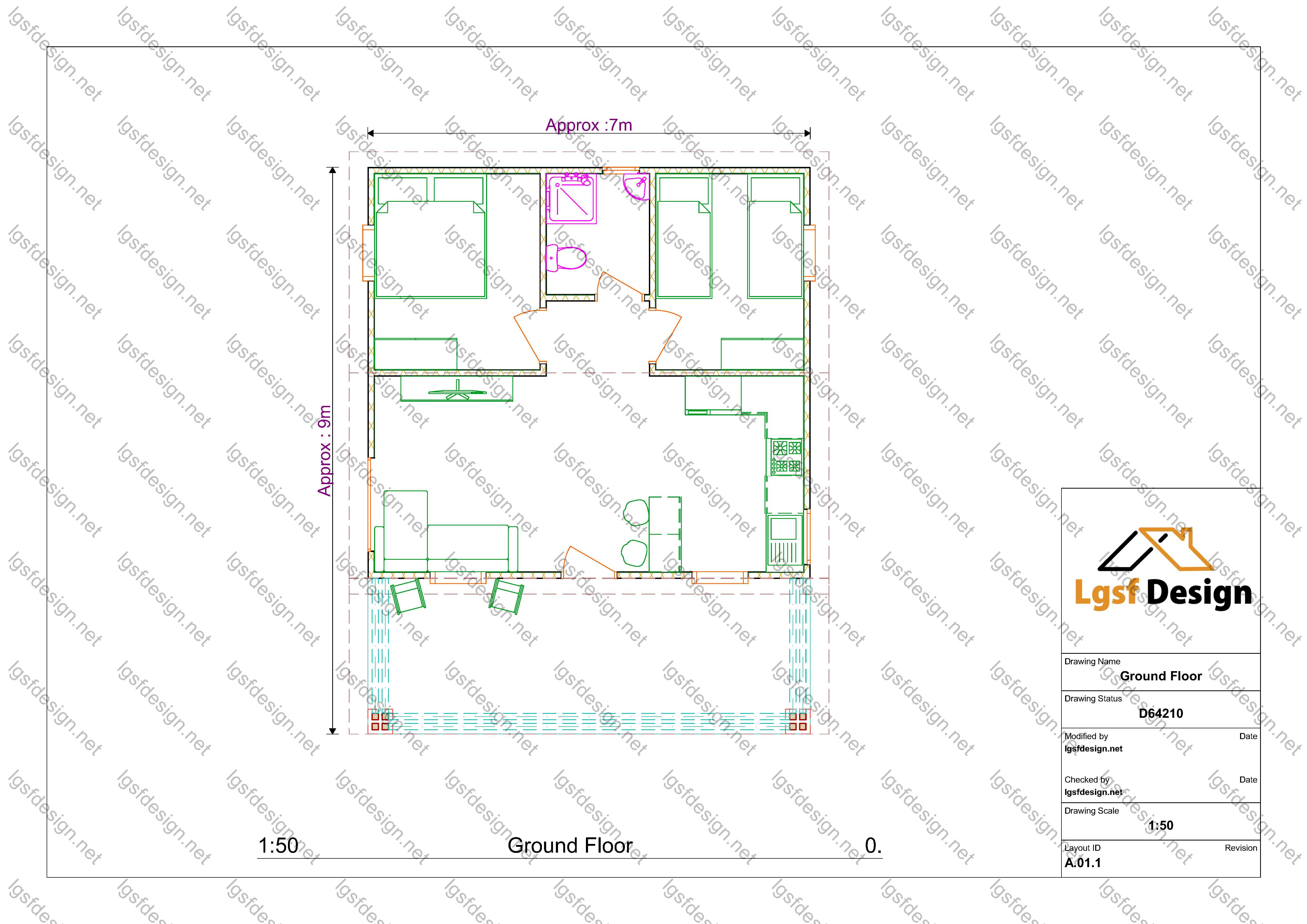

Floor plan
Package options
Start with the full manufacture-ready package, or request individual deliverables.
Best value
Full package
Complete drawings, calculations, CNC files, and BOQ for D64210.
$ 310
Order NowIndividual deliverables
- Foundation $70
- Architectural Drawings $80
- Complete BOQ $80
- Drawings, calculations & CNC files $80
Technical details
Structural, material, and design-load values for this package.
Structure
Weight
1474 kg
Longest member
4 m
Materials
- Steel sections
-
- 89S41G350-0.75 mm
- 89S41G350-0.95 mm
Load conditions
Design code
IBC 2021
Snow load
0.5 kN/m²
Wind velocity
40 m/s
Wind pressure
0.8 kN/m²
Peak ground accel.
0.2 m/s²
