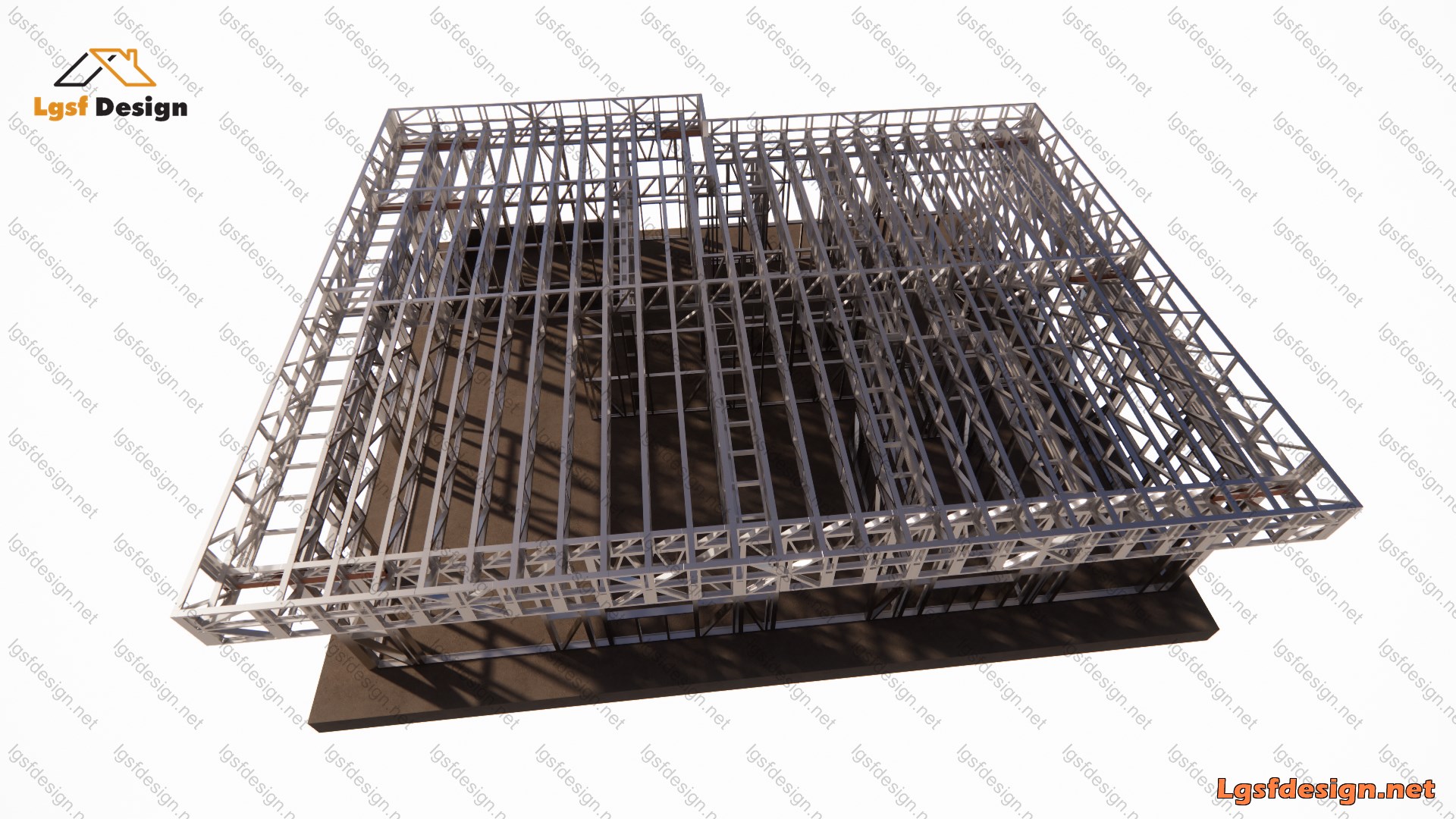

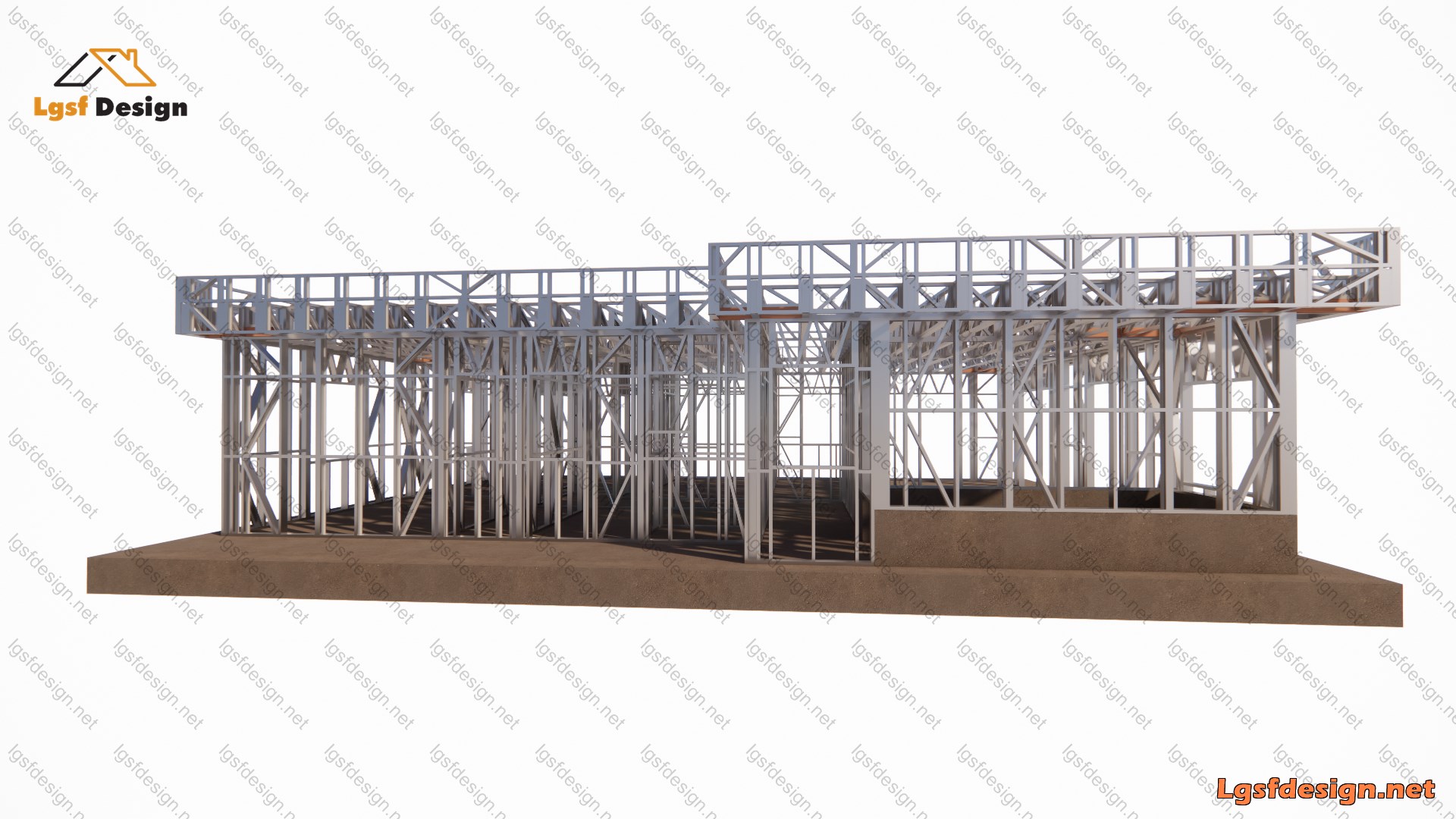

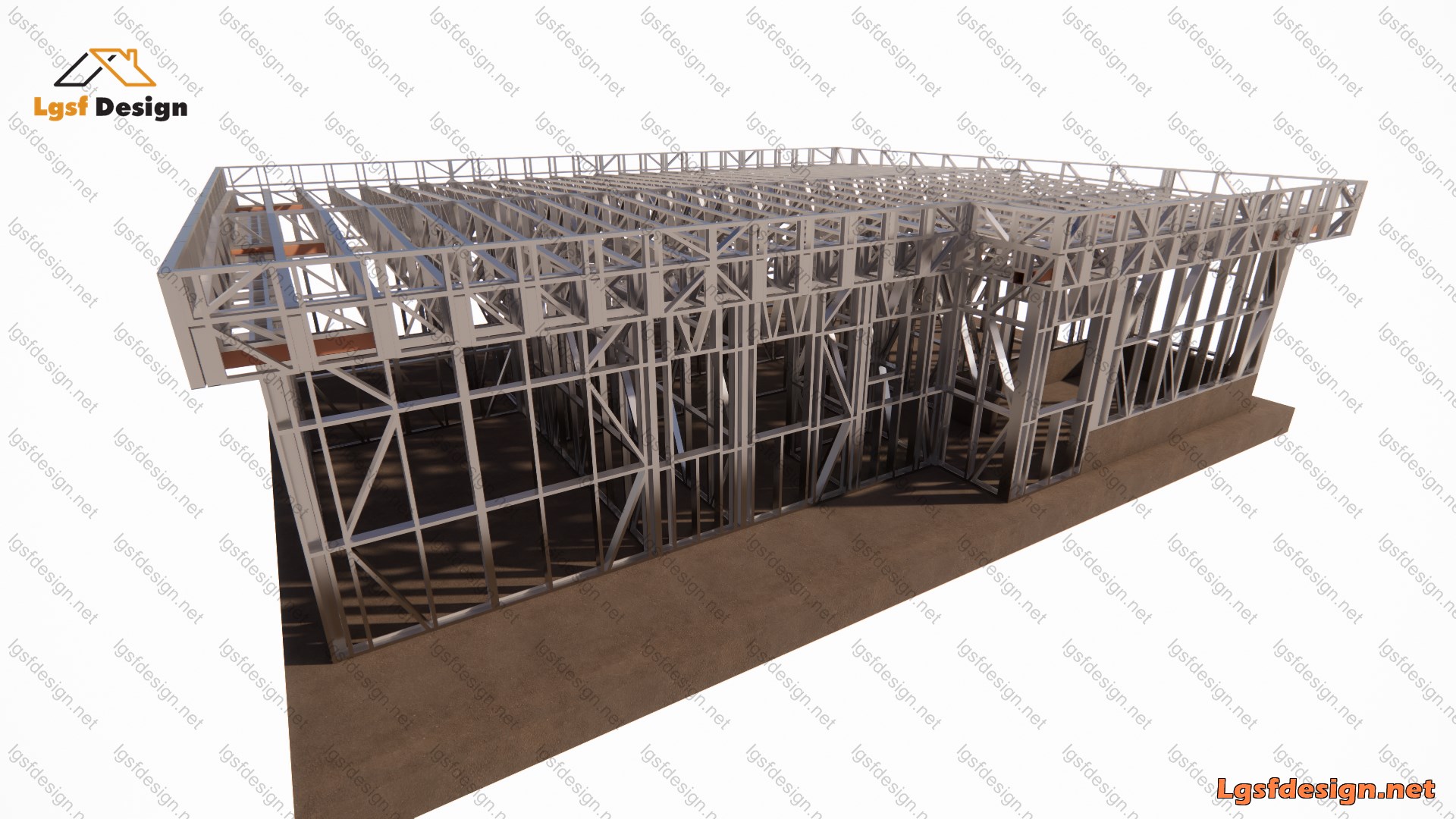

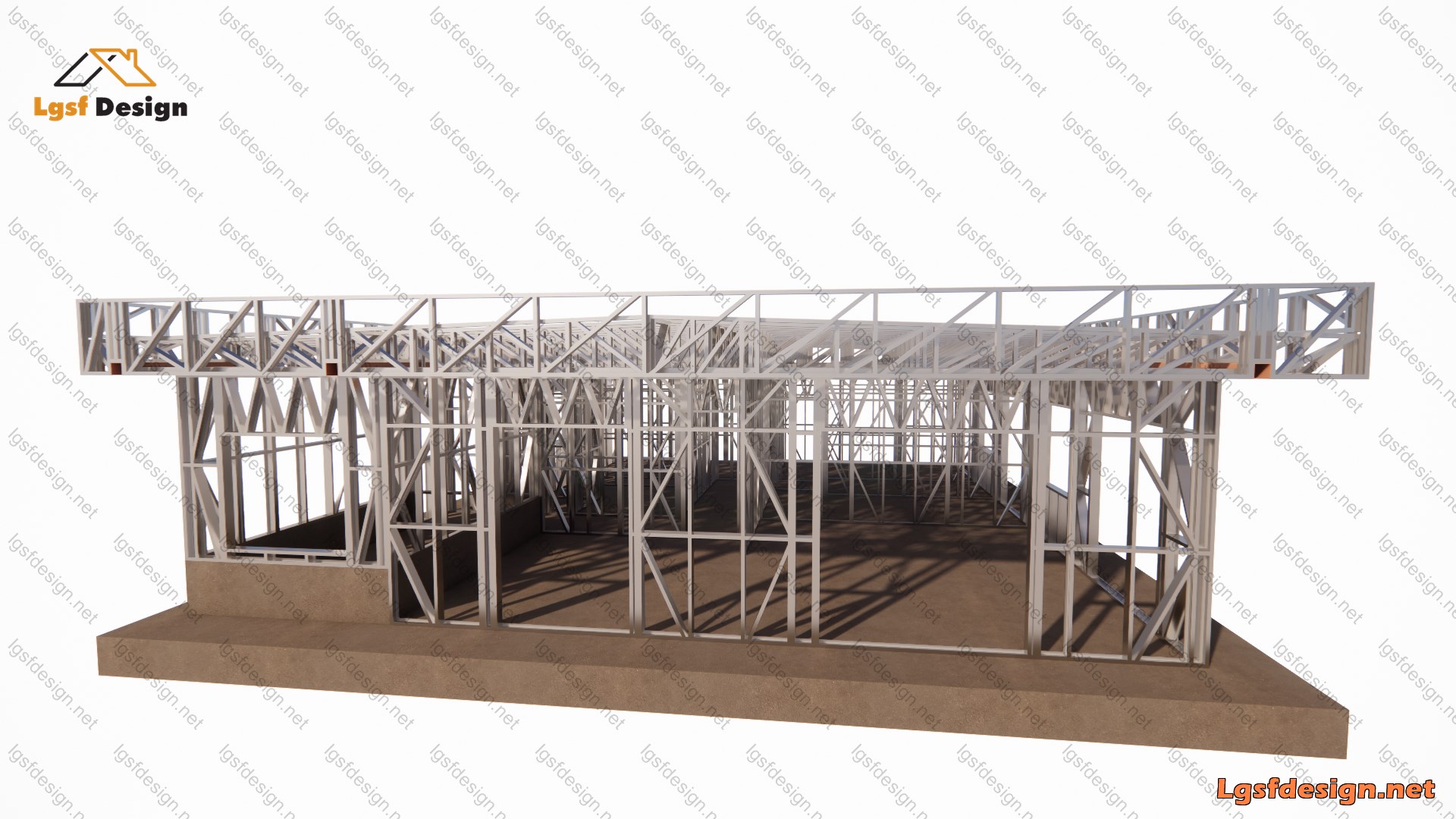

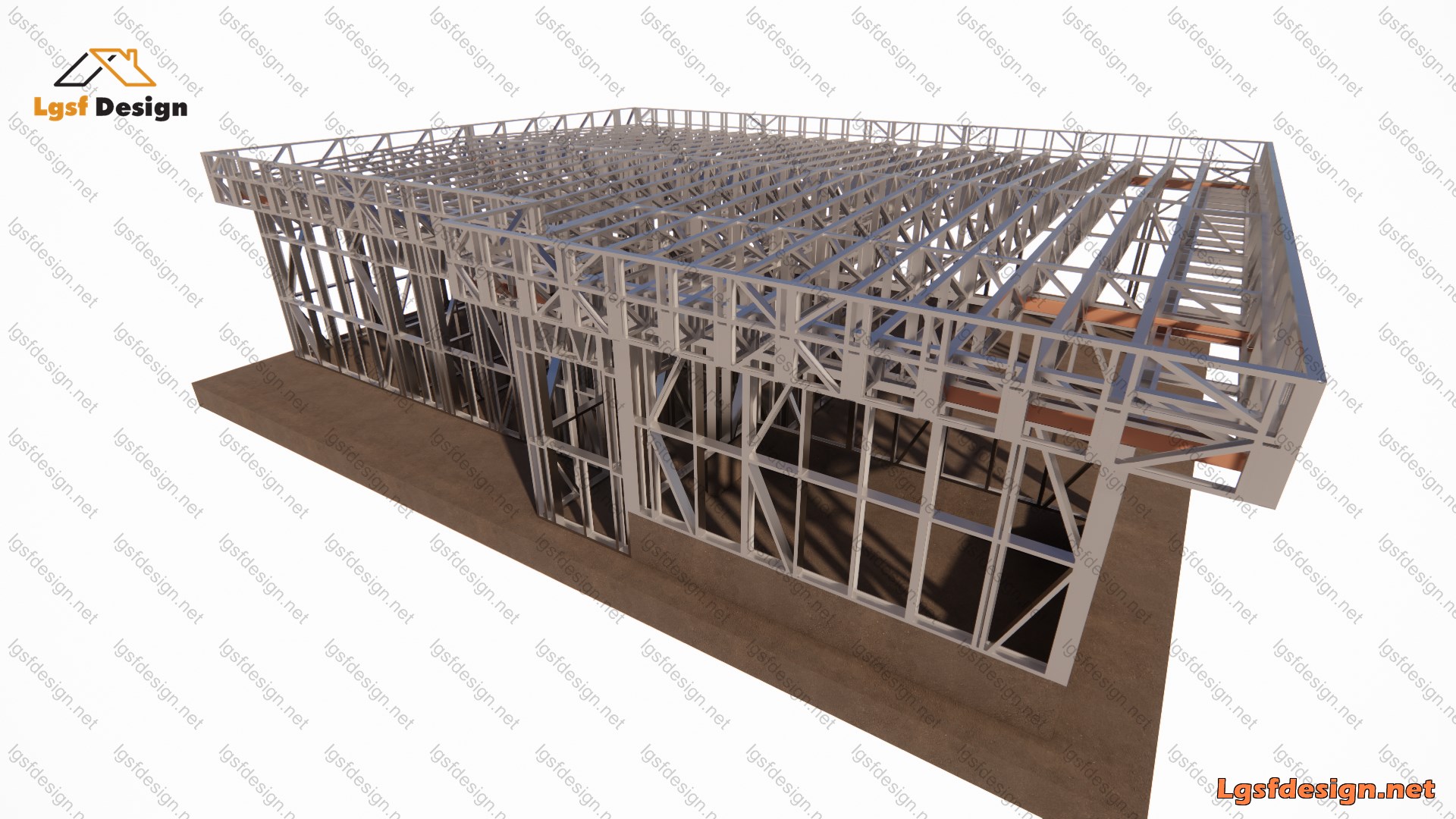

3D Structure Model

Click here to view the 3D model online or download .wrl or .ifc file
EXPLORE 3D STRUCTURE VISUALIZATION

Description

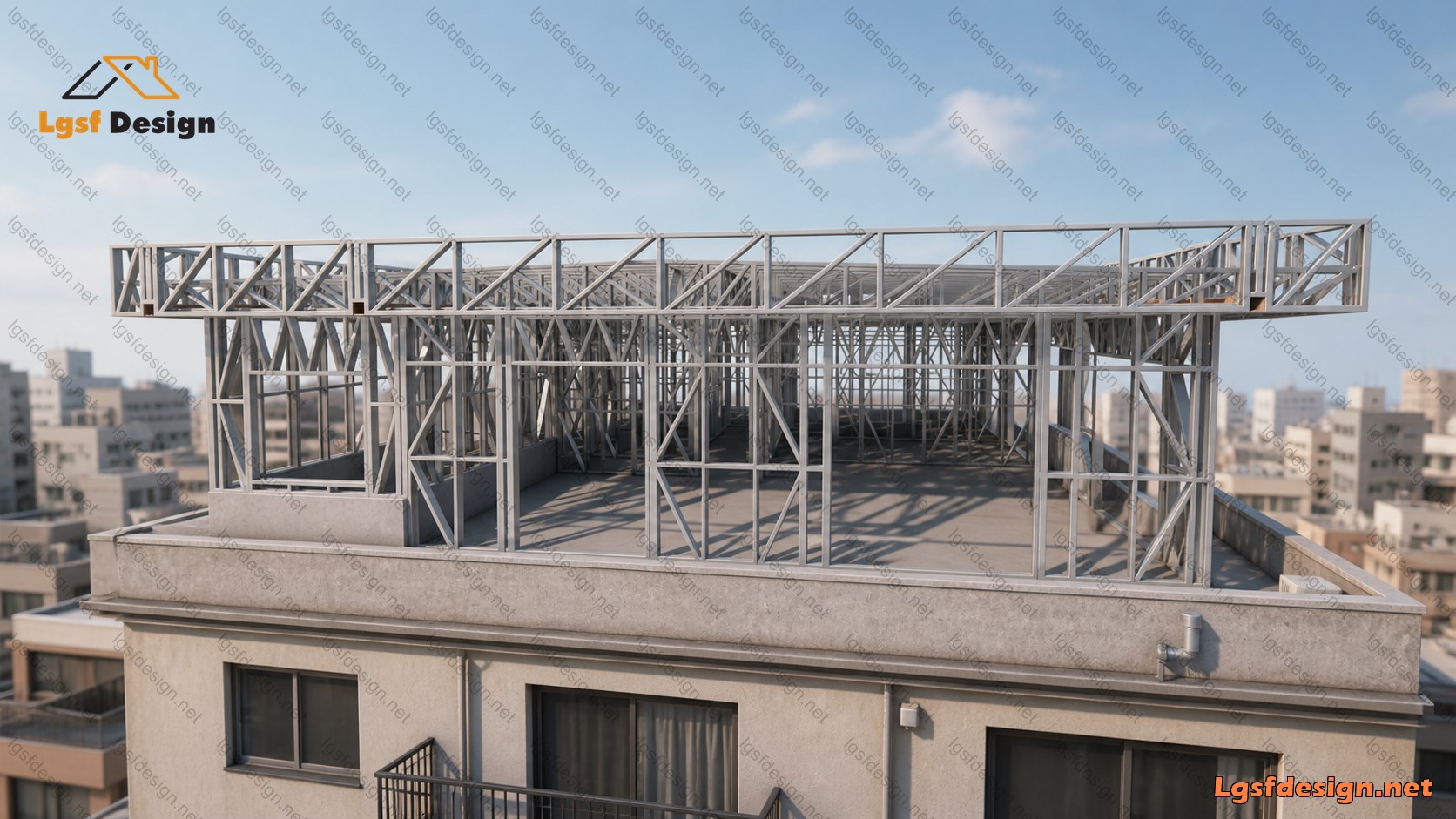

This modern rooftop extension showcases the power and efficiency of Light Steel Frame (LSF) construction in vertical expansion projects. Designed as an additional floor on an existing building, the structure demonstrates how lightweight steel systems make it possible to add new living space without imposing excessive loads on the original structure.

The precision-engineered LSF system ensures high strength-to-weight performance, allowing for fast installation, minimal disruption, and excellent structural reliability. Its modular nature makes it especially suitable for rooftop additions, where traditional construction methods would be limited by weight, time, and complexity.

Beyond its structural advantages, the design offers flexibility in architectural planning, enabling open spaces, large windows, and modern layouts. Even in challenging conditions—such as cold or snowy climates—the LSF system maintains its performance, resisting deformation, moisture-related issues, and long-term degradation.

This project highlights a smart and sustainable approach to urban development: expanding upward efficiently, safely, and with advanced engineering solutions.

Key Specs

  • Title :

  • Location :

  • Area :

  • Bedroom :

  • Bathroom :

  • POPOV

  • Bosnia and Herzegovina

  • 191 m2

  • 3

  • 2

Additional Details

  • Heavy Steel :

  • Roll Former Machine :

  • Longest Member :

  • Time to Design :

  • No

  • Dahezb

  • 8.00 m

  • 1 Day

Load Conditions

  • Designing Code :

  • Characteristic Value of Snow Load :

  • Fundamental Basic Wind Velocity :

  • Basic Velocity Pressure :

  • Reference Value of Peak Ground Acceleration :

  • IBC 2021

  • 1.00 kN/m2

  • 28.00 m/s

  • 0.40 kN/m2

  • 0.20 m/s2

Leave a message if you have similar project and need to design.
