EM42

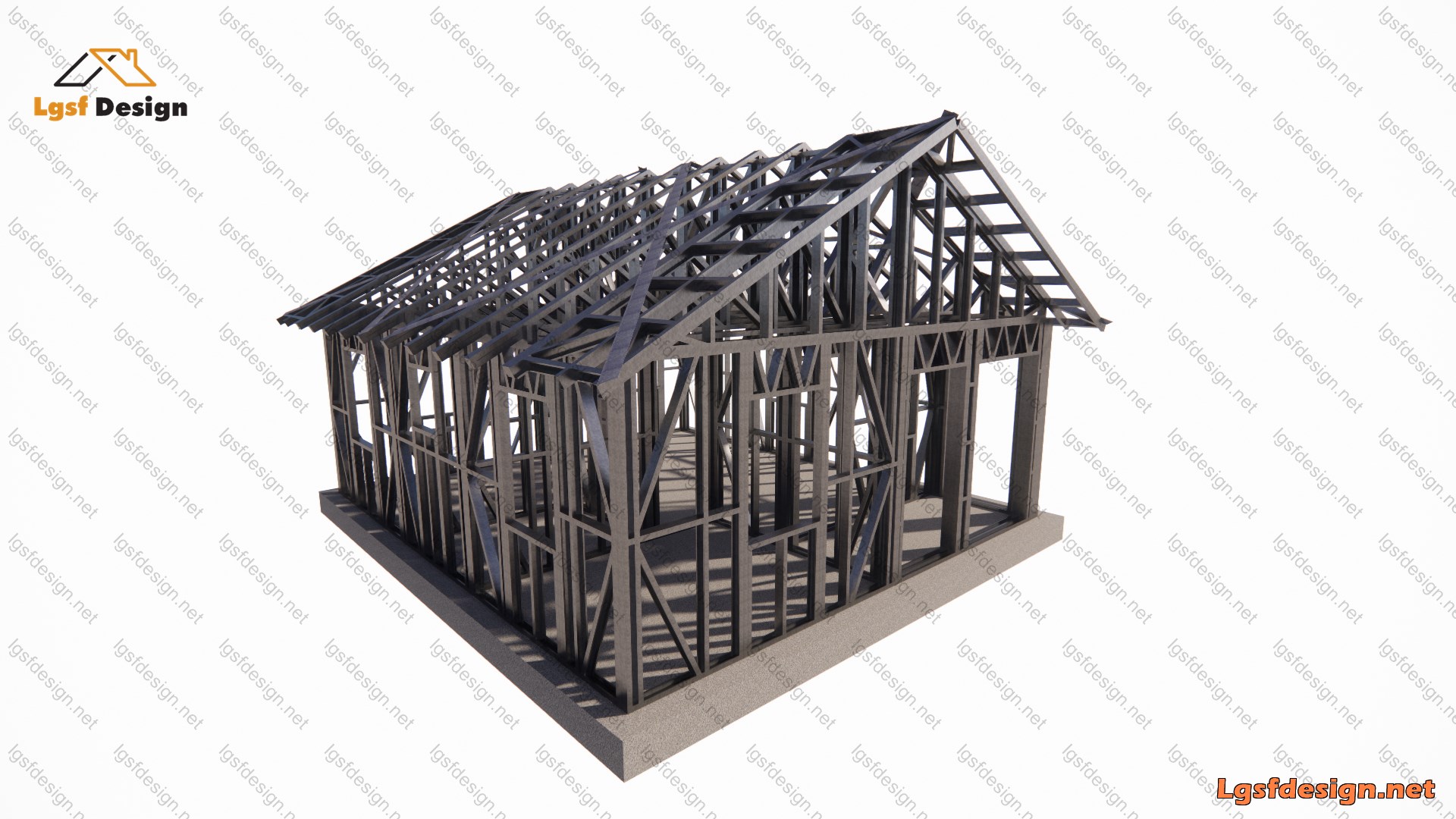

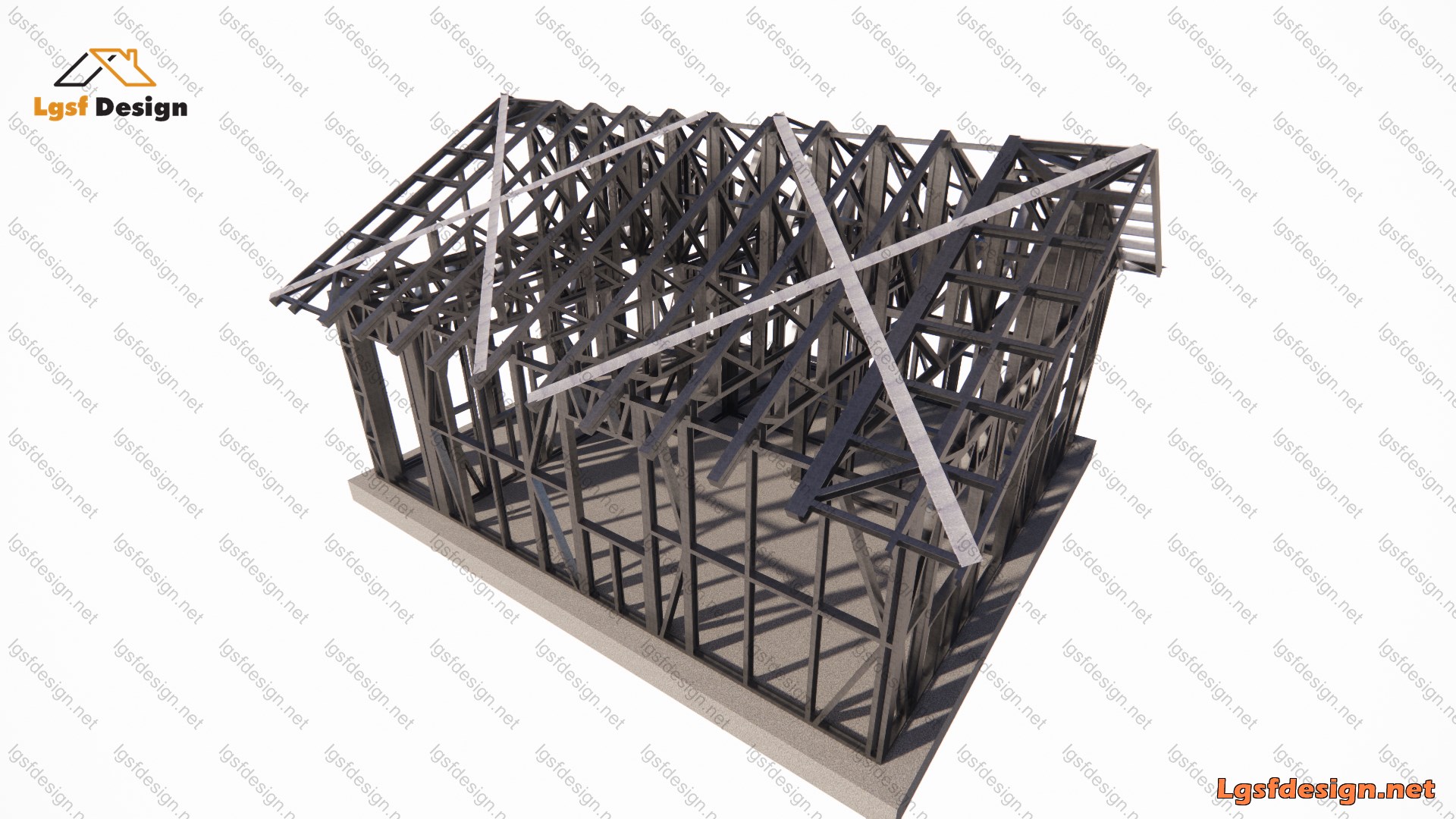

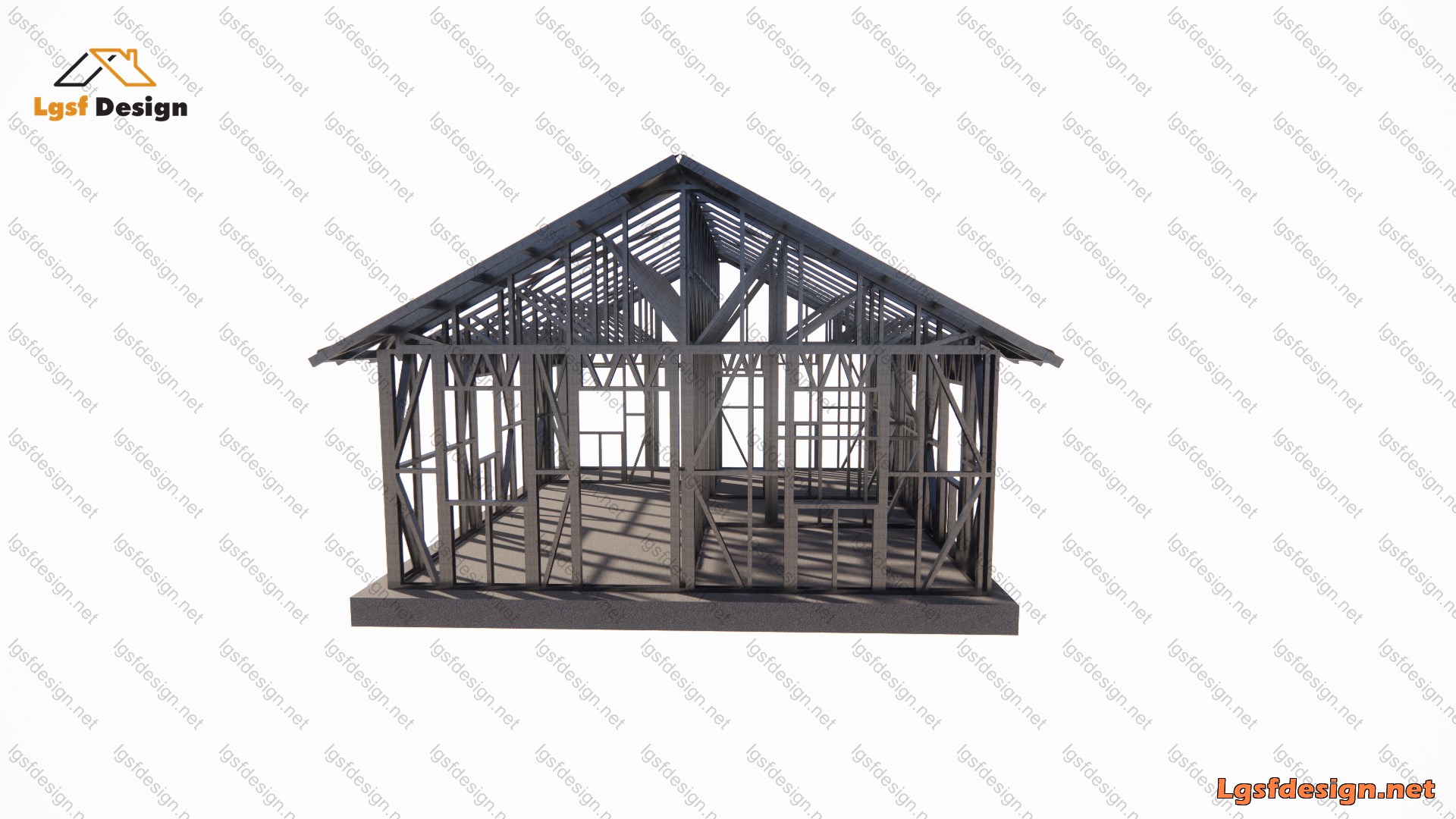

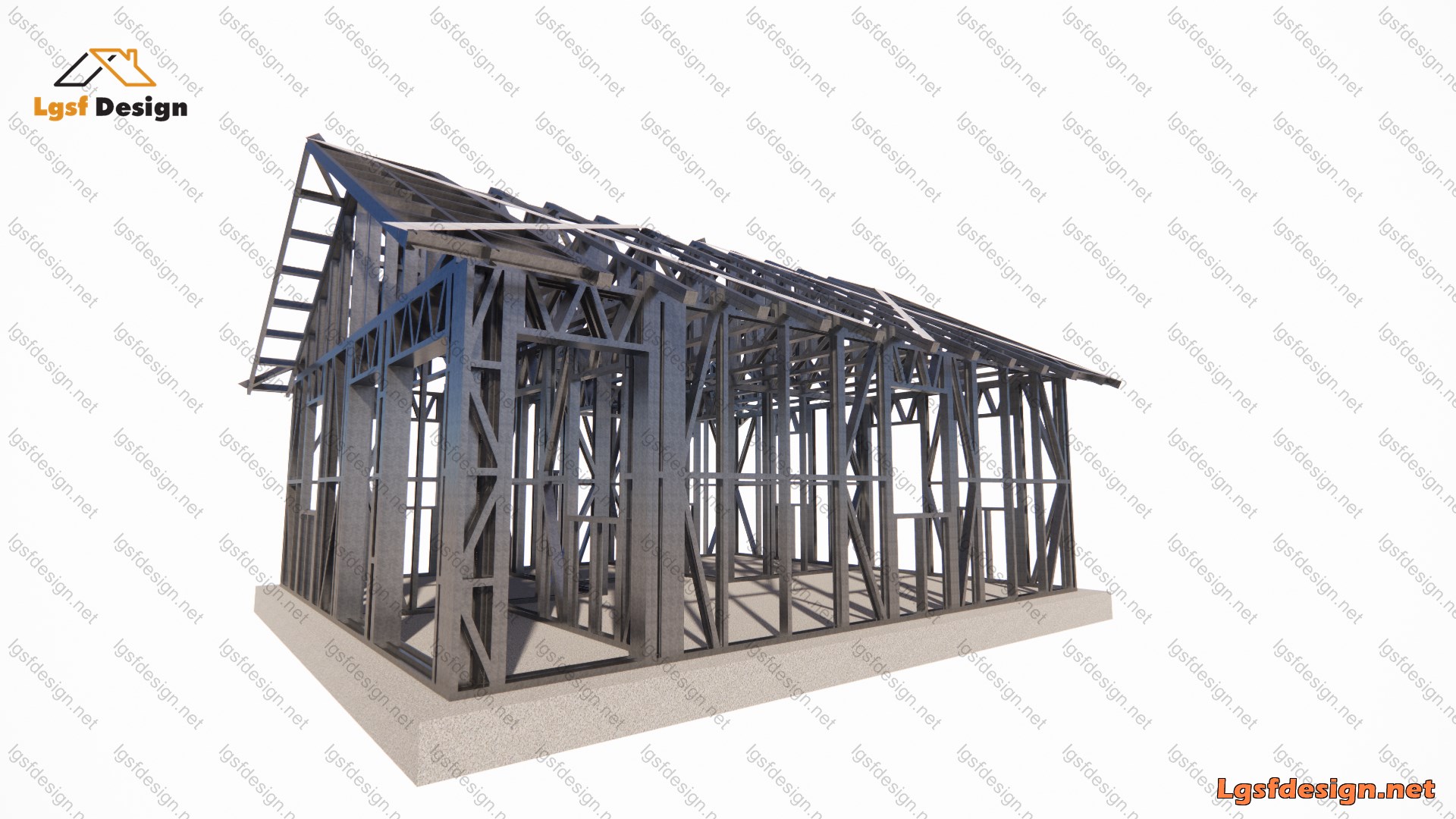

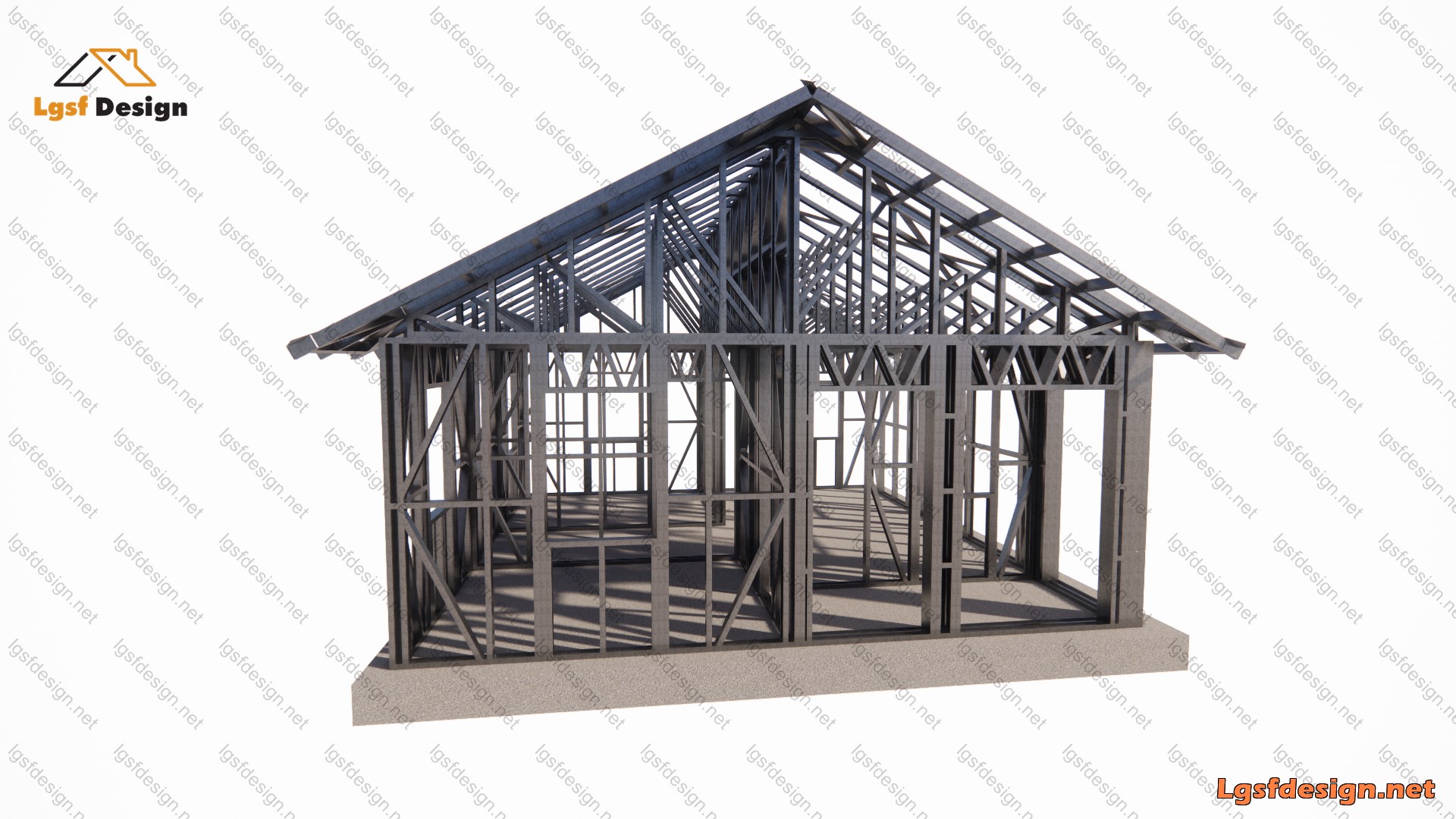

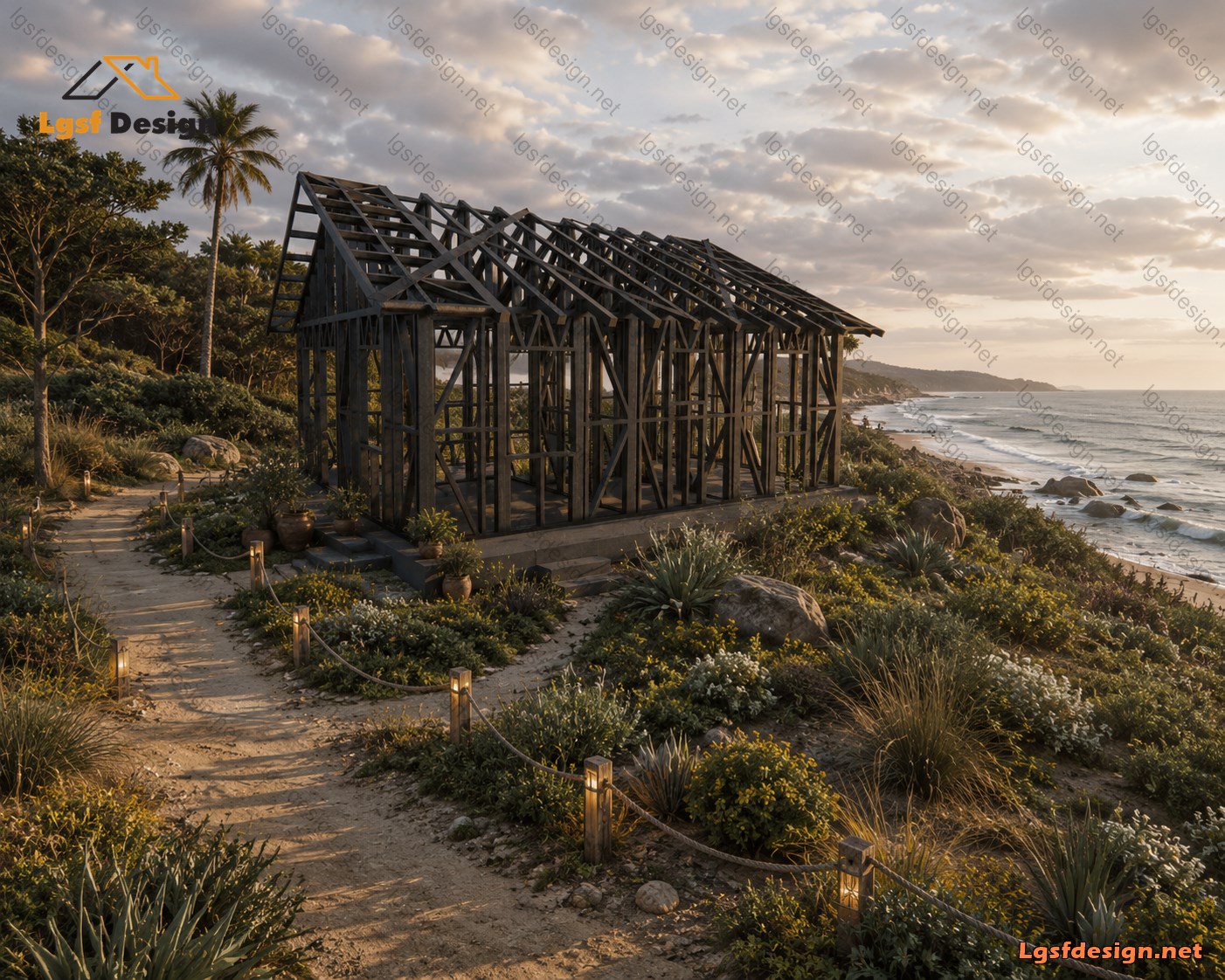

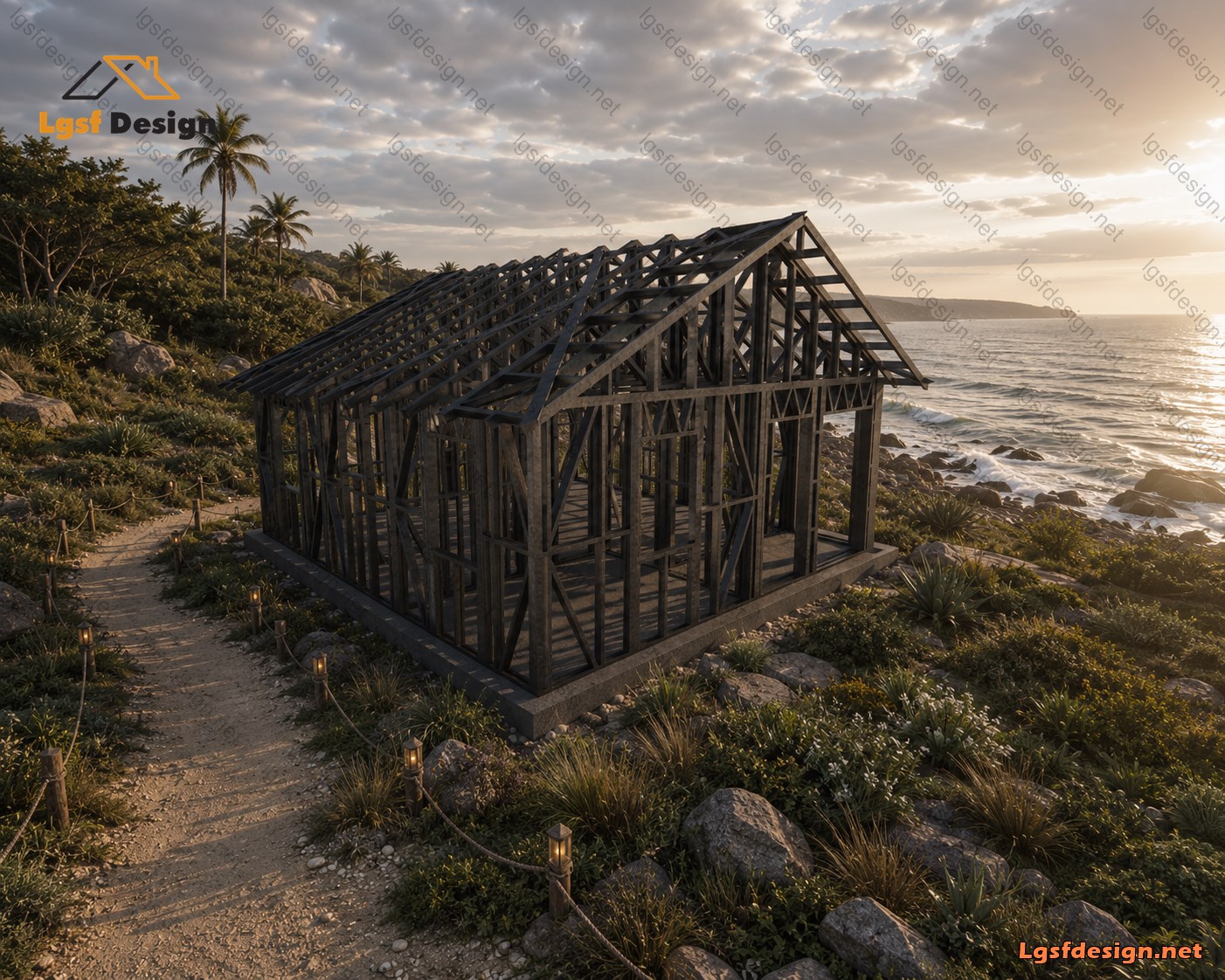

3D Structure Model
Description
This is a 42 m² residential layout designed as an emergency house for rapid-deployment accommodation projects. The plan includes two bedrooms, a central bathroom, and an open-concept living, dining, and kitchen area that provides efficient use of space while maintaining comfort. The compact footprint and simple structural arrangement make it suitable for quick construction and cost-effective installation, particularly in regions where fast housing solutions are required. This specific unit was designed for a project in Guyana, where small, durable, and quickly assembled homes are essential.
For design services or similar project requests, feel free to contact us.
Key Specs
Title :
Location :
Area :
Bedroom :
Bathroom :
EM42
Guyana42 m2
2
1
Additional Details
Heavy Steel :
Roll Former Machine :
Longest Member :
Time to Design :
No
Framecad
6.50 m
1 Day
Load Conditions
Designing Code :
Characteristic Value of Snow Load :
Fundamental Basic Wind Velocity :
Basic Velocity Pressure :
Reference Value of Peak Ground Acceleration :
IBC 2021
0.00 kN/m2
45.00 m/s
1.00 kN/m2
0.20 m/s2
