About this plan
?? A cozy getaway surrounded by nature! ? Discover this charming 42 sqm home and stunning views. ?? With one bedrooms and a bathroom, it's the perfect forest cabin for your dream vacation! ????

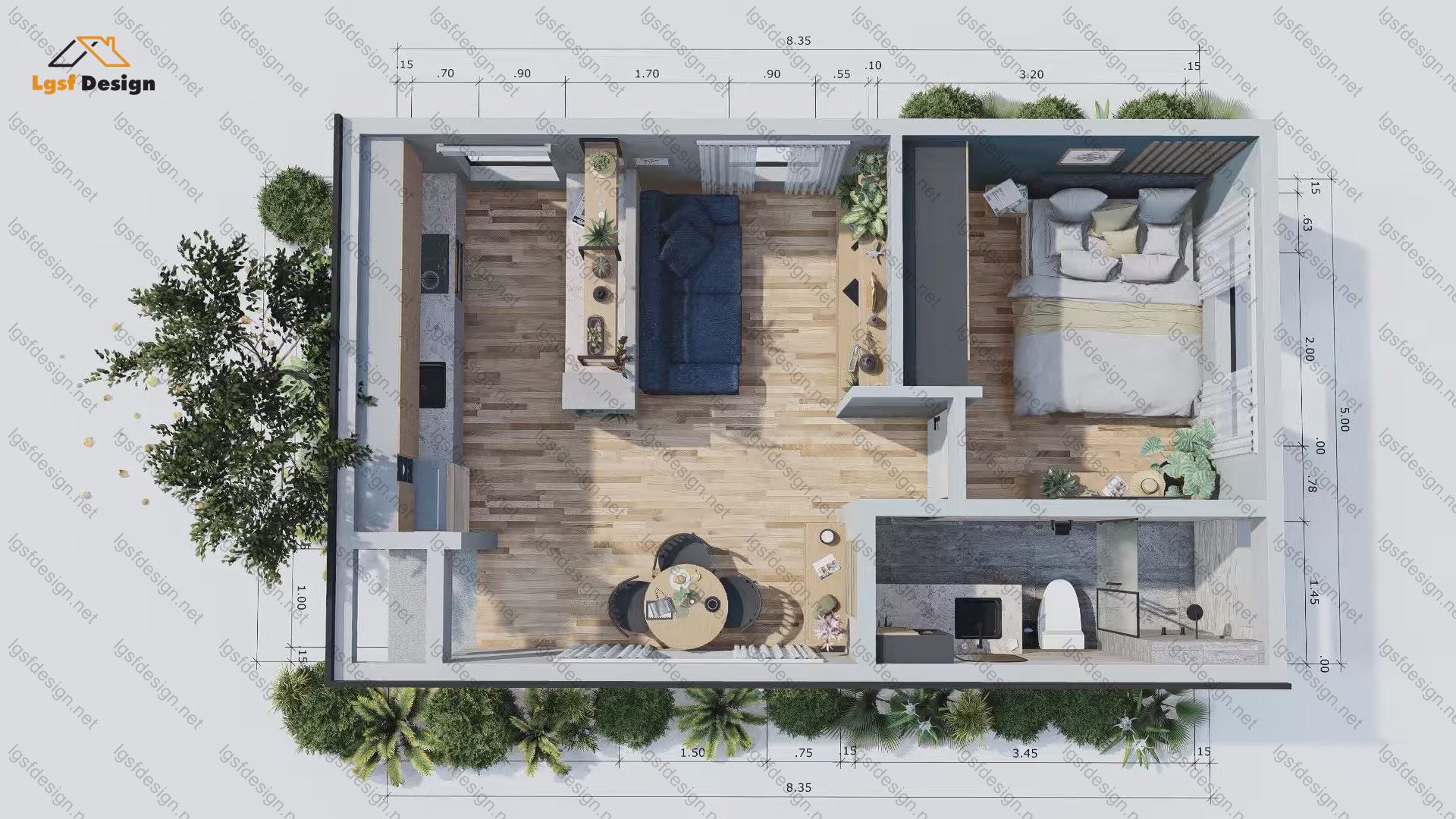

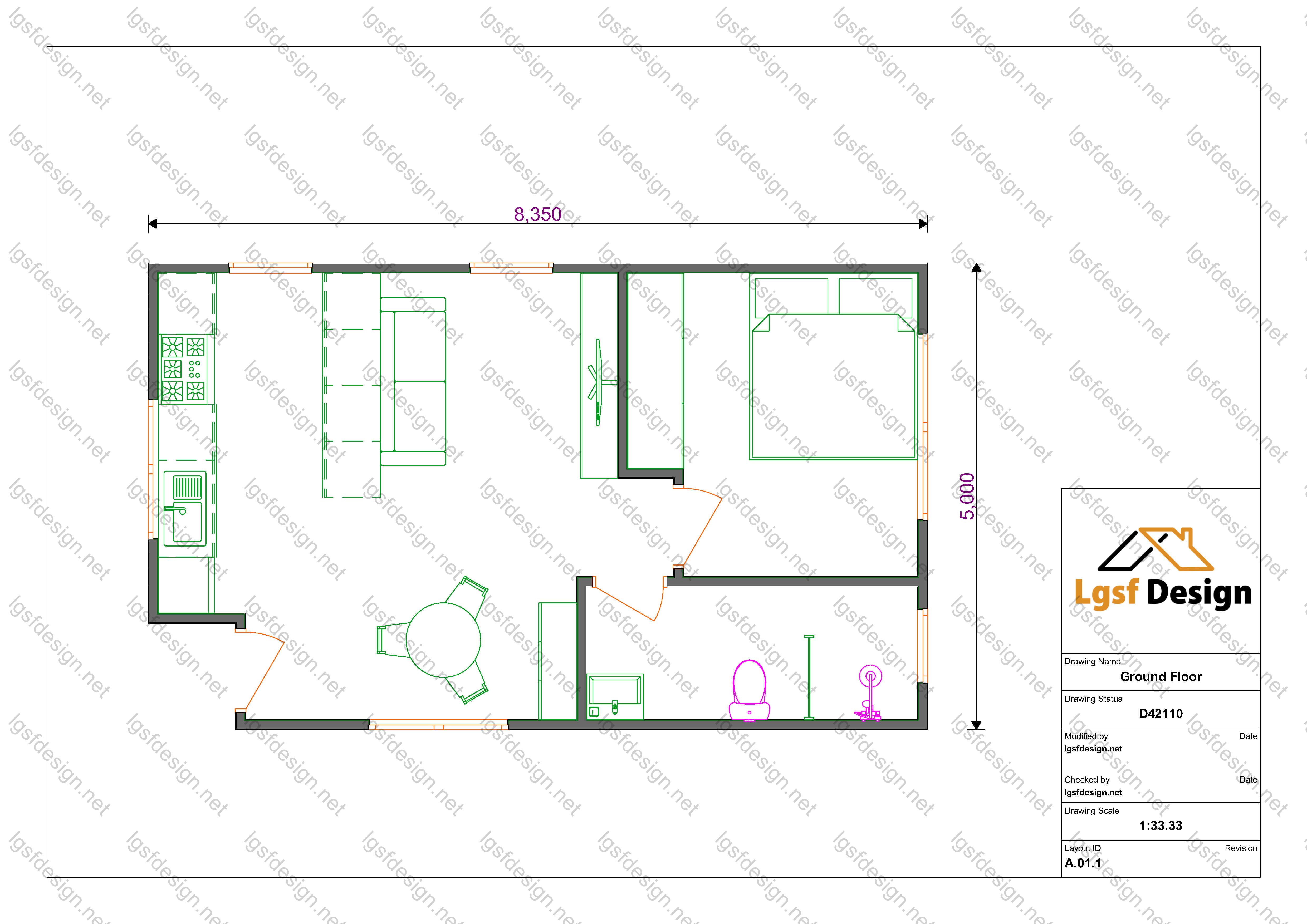

Floor plan
Package options
Start with the full manufacture-ready package, or request individual deliverables.
Best value
Full package
Complete drawings, calculations, CNC files, and BOQ for D42110.
$ 240
Order NowIndividual deliverables
- Foundation $50
- Architectural Drawings $50
- Complete BOQ $80
- Drawings, calculations & CNC files $60
Technical details
Structural, material, and design-load values for this package.

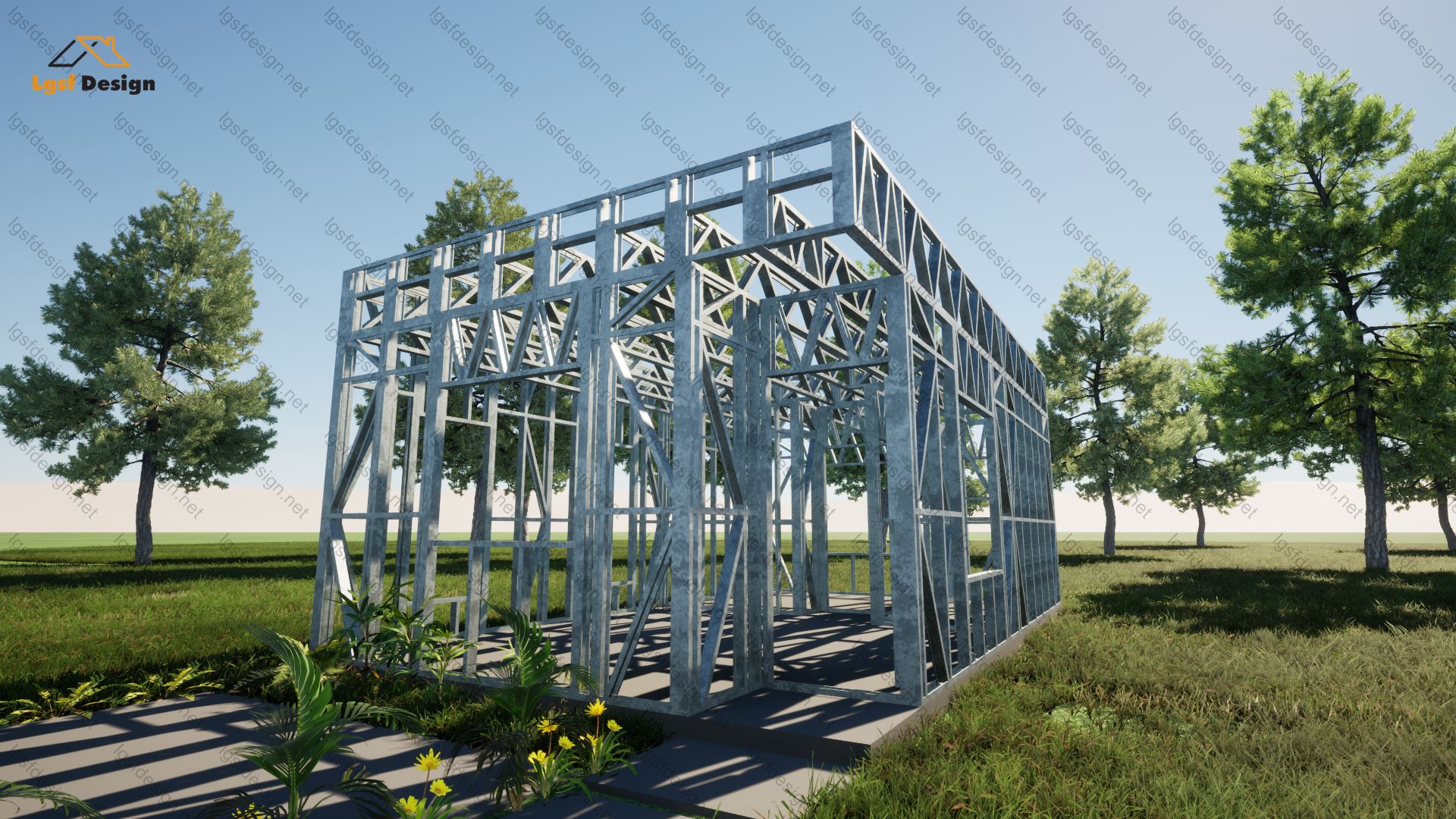

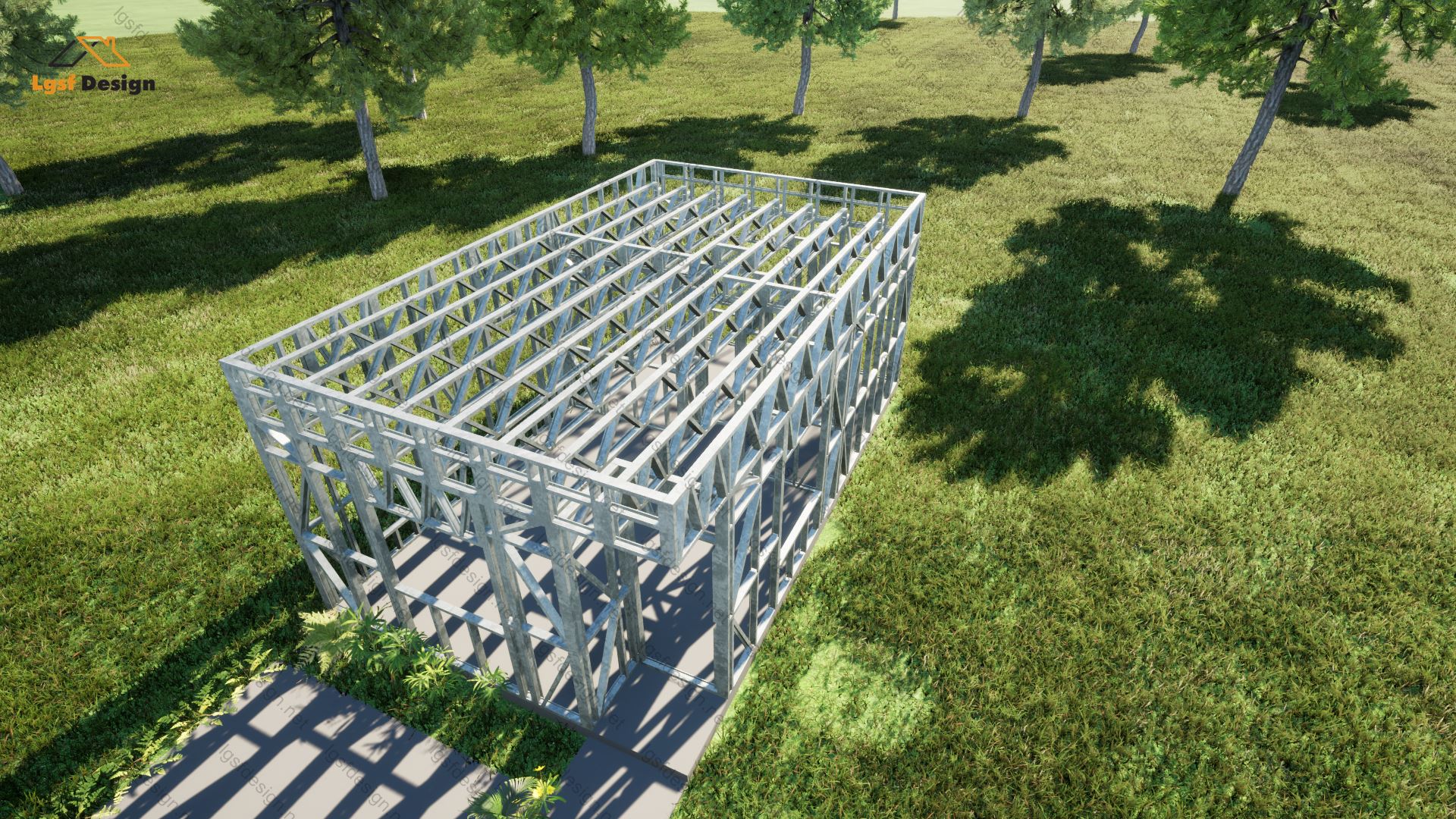

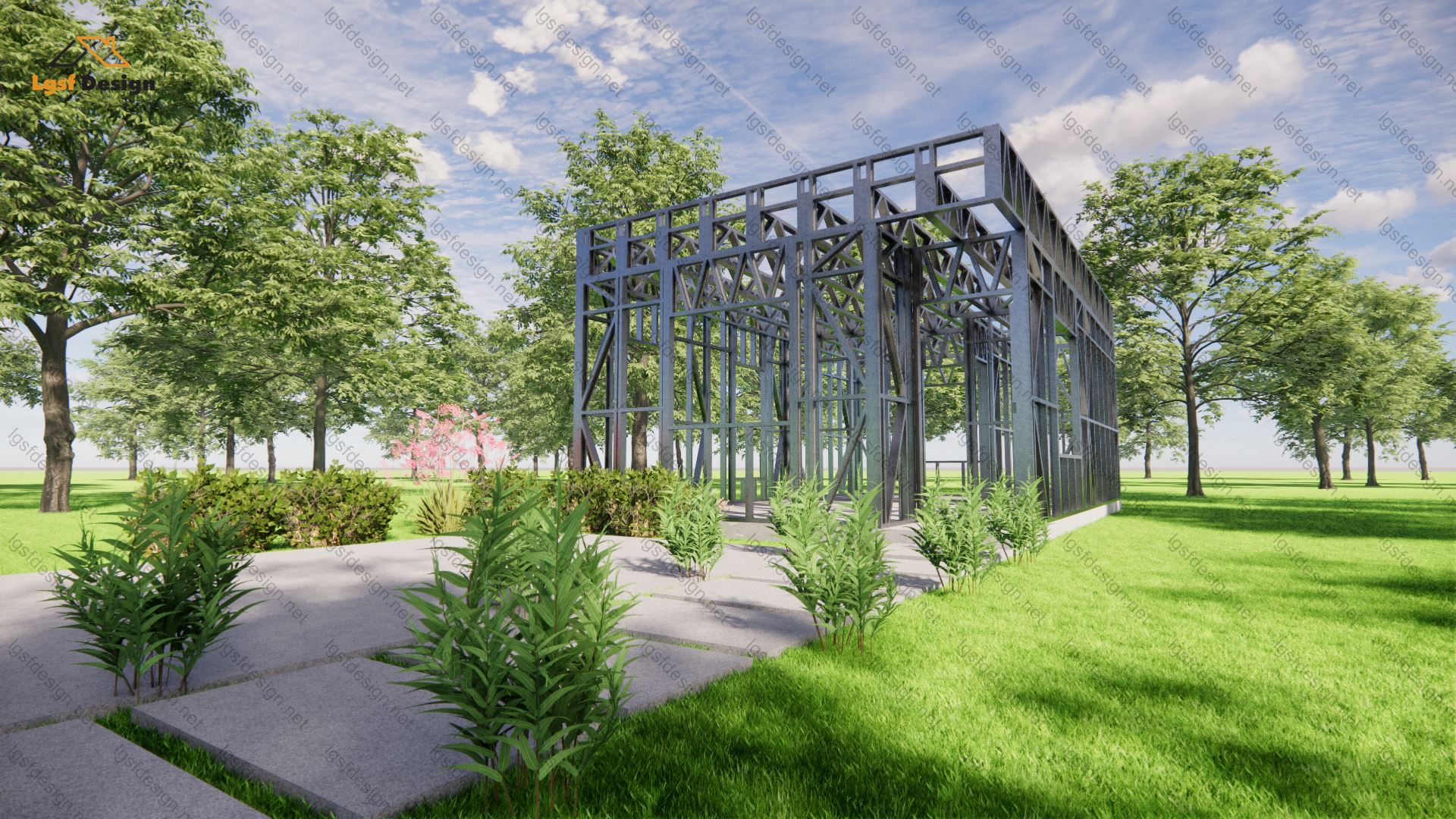

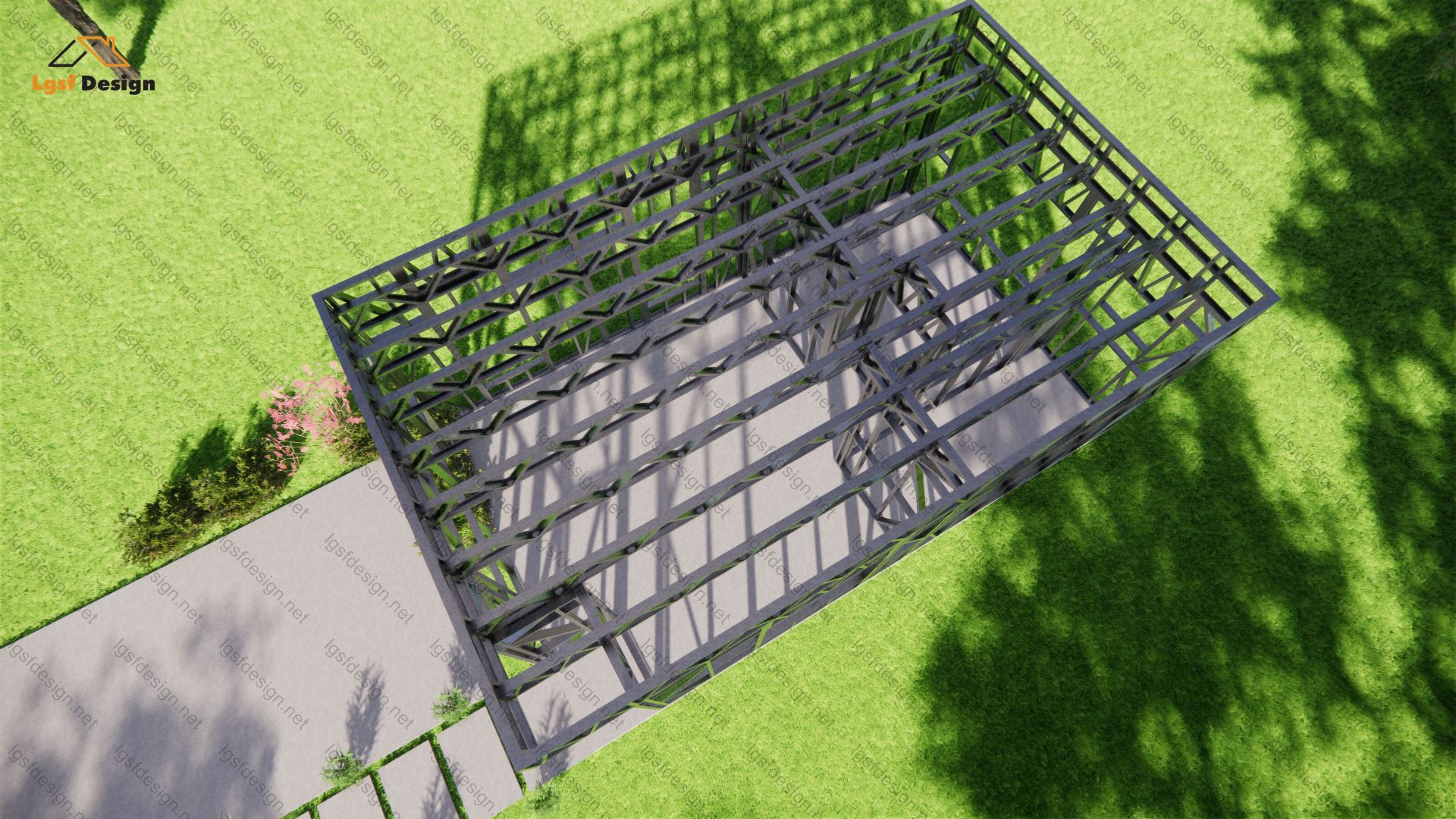

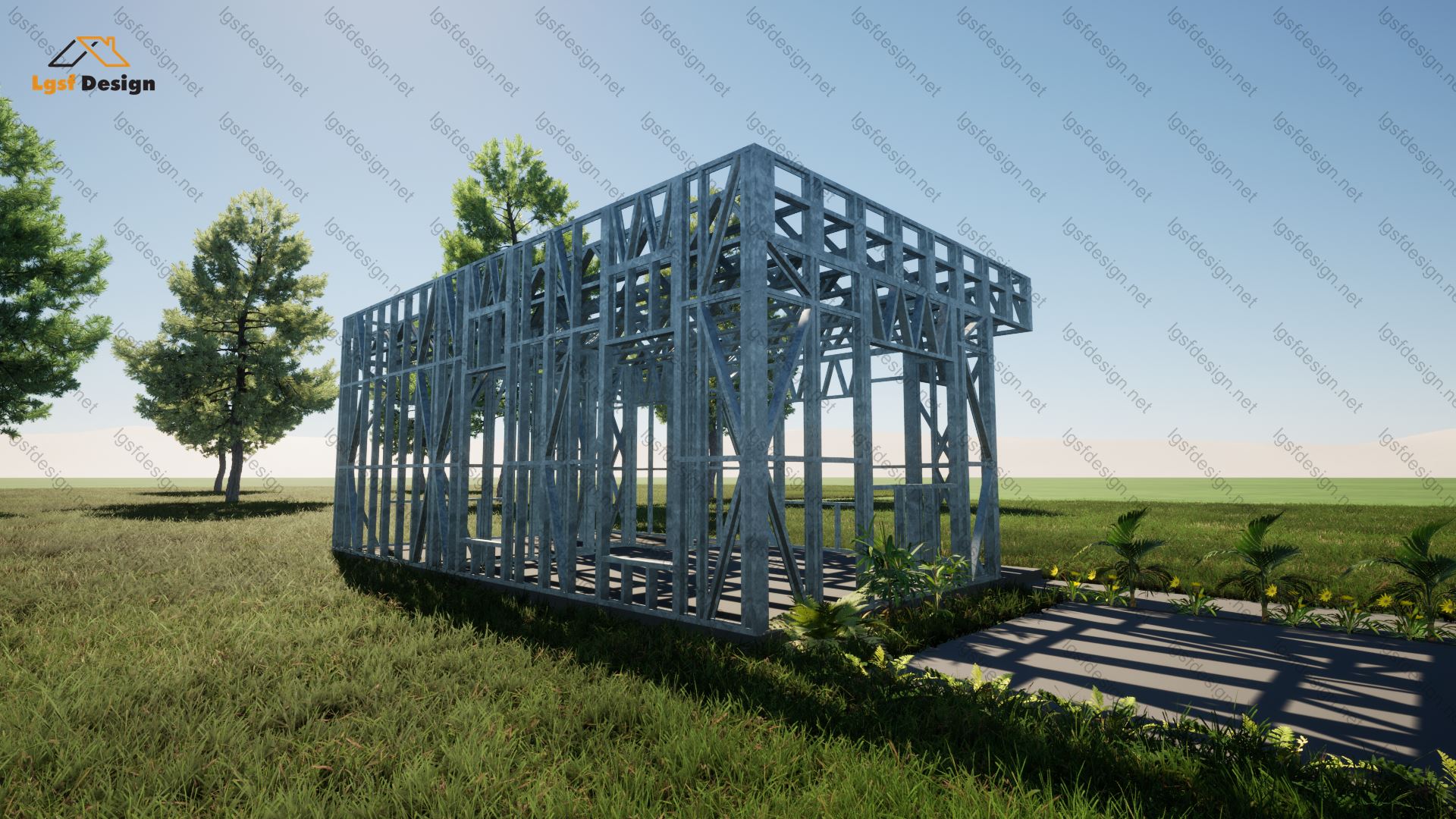

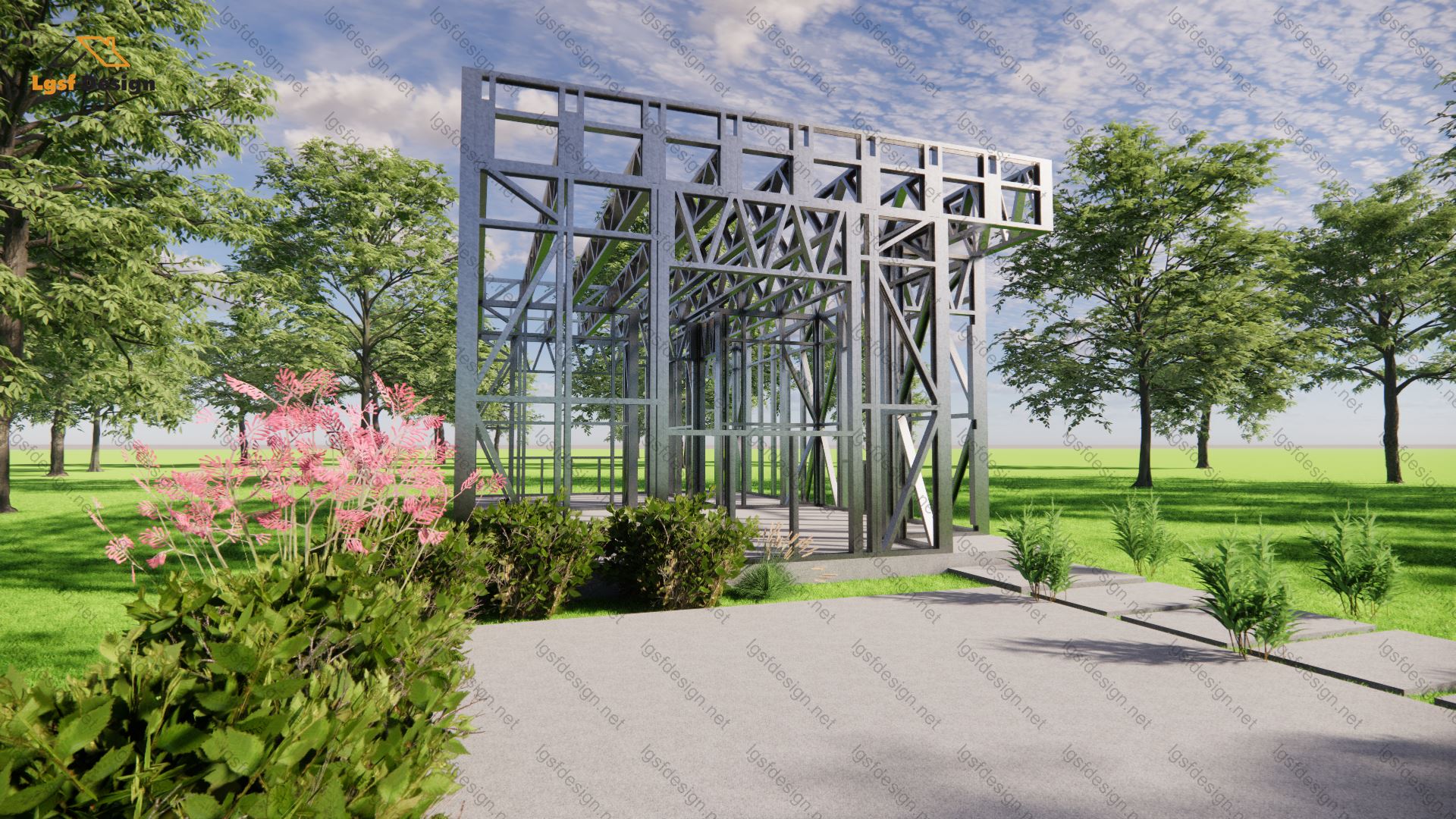

Structure
Weight
1130 kg
Longest member
8.3 m
Materials
- Steel sections
-
- 89S41G350-0.75 mm
Load conditions
Design code
IBC 2021
Snow load
0.5 kN/m²
Wind velocity
44 m/s
Wind pressure
1 kN/m²
Peak ground accel.
0.23 m/s²
Ask about this plan
Have a question about this plan? Send us a message and we'll reply by email, usually within 1–2 business days.
D43110

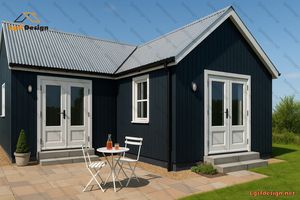

D40110

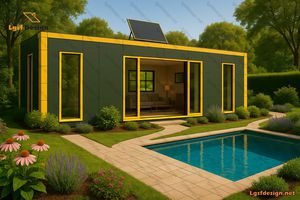

D38110
