About this plan

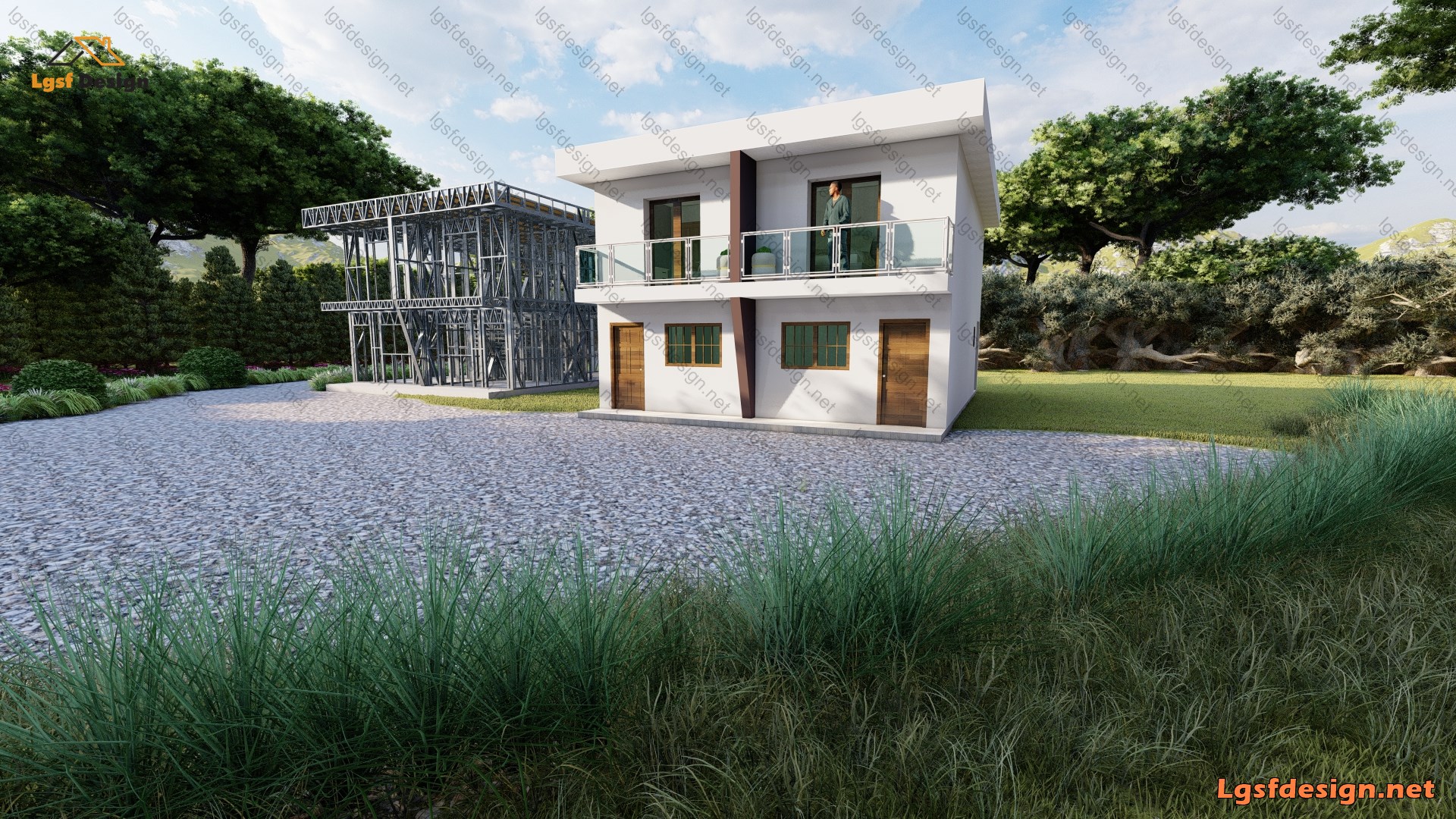

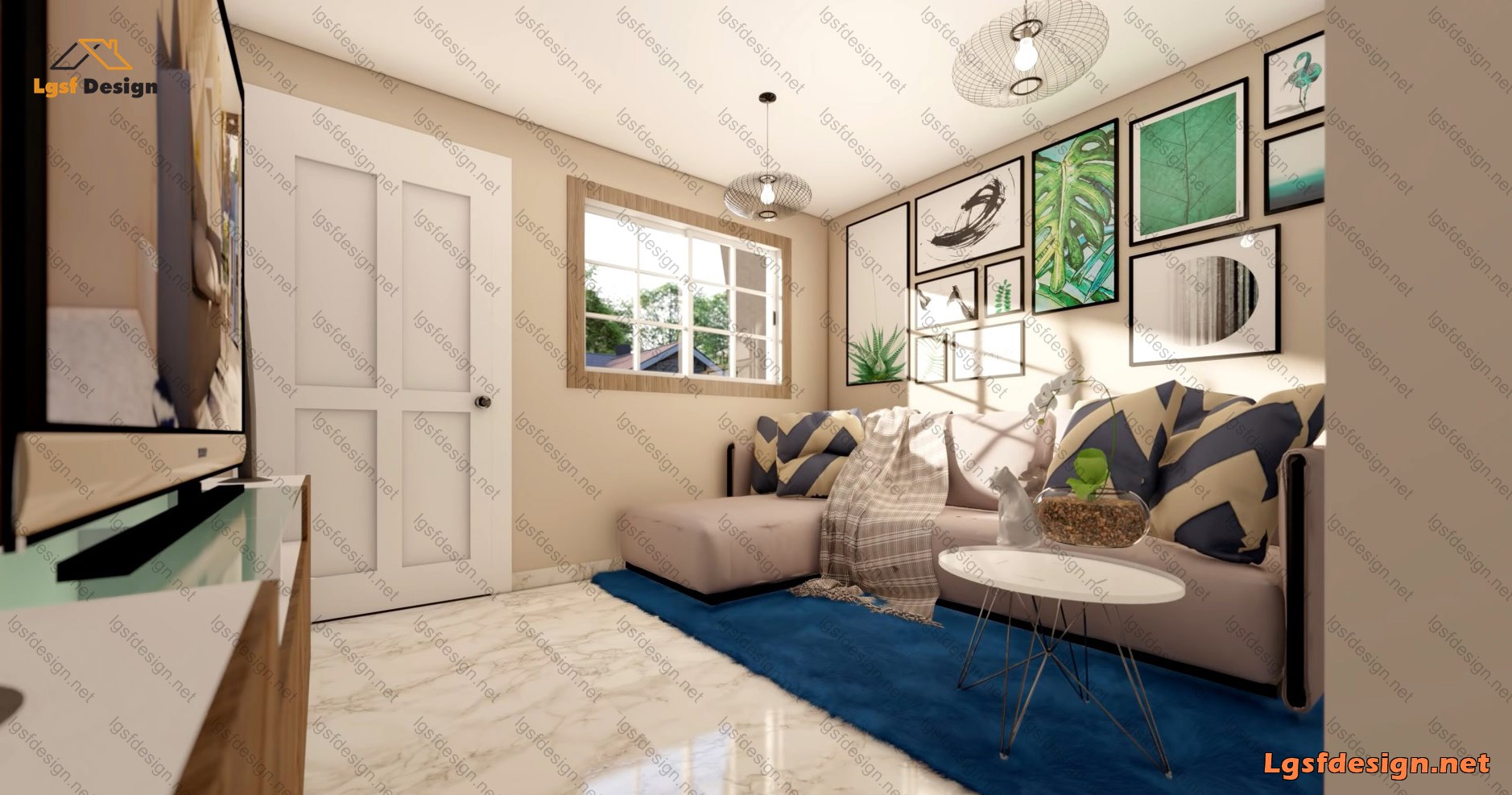

This clever design showcases two adjoining 75-square-meter homes, totaling 150 square meters. Each unit features a ground floor with an open living space, equipped kitchen, and bathroom. The first floor of each unit contains two large bedrooms with built-in closets and a full bathroom. Central spiral staircases connect the floors. Large windows provide abundant natural light. This efficient design offers an ideal combination of private and public spaces in a compact, flexible format, perfect for modern living arrangements.

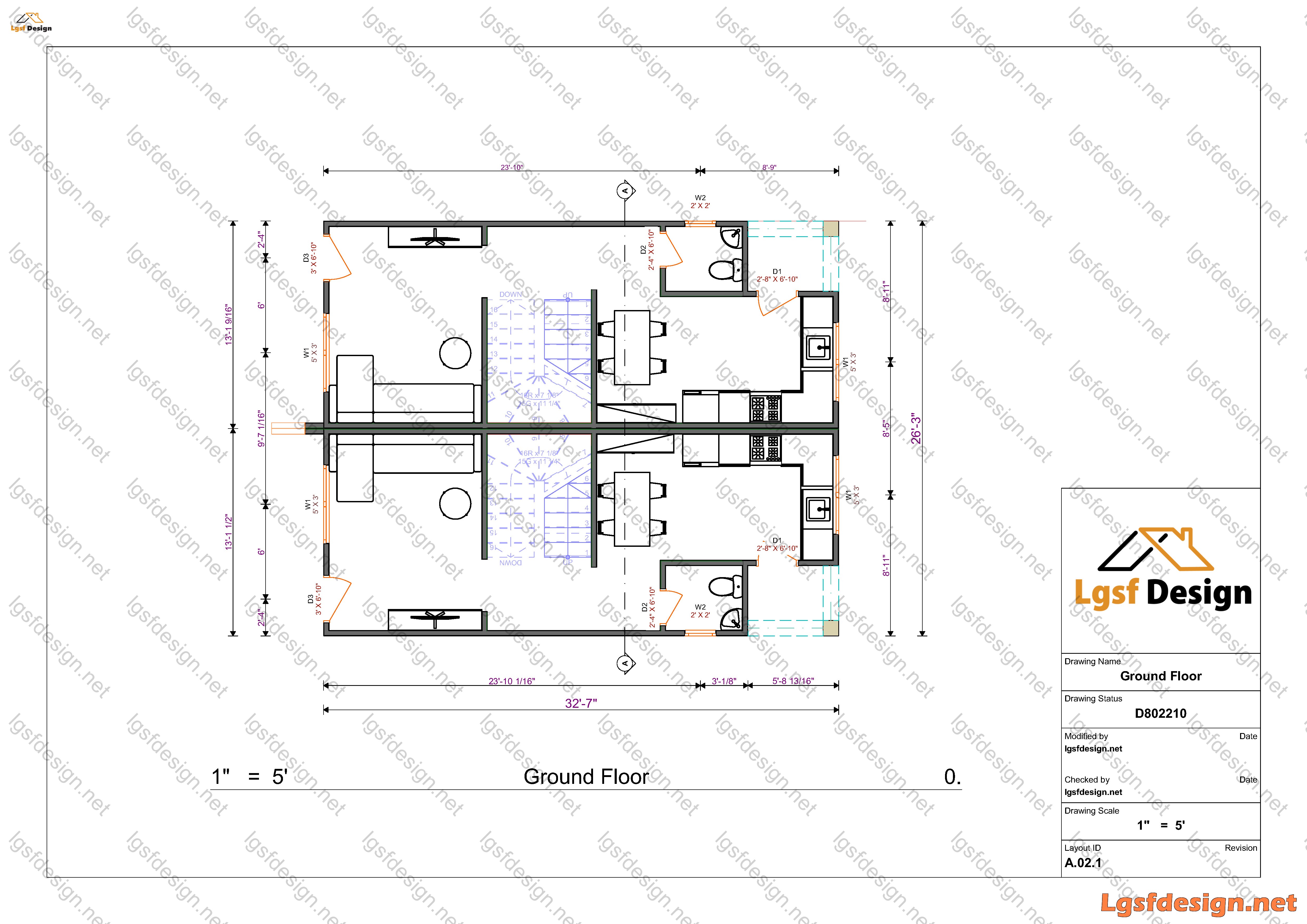

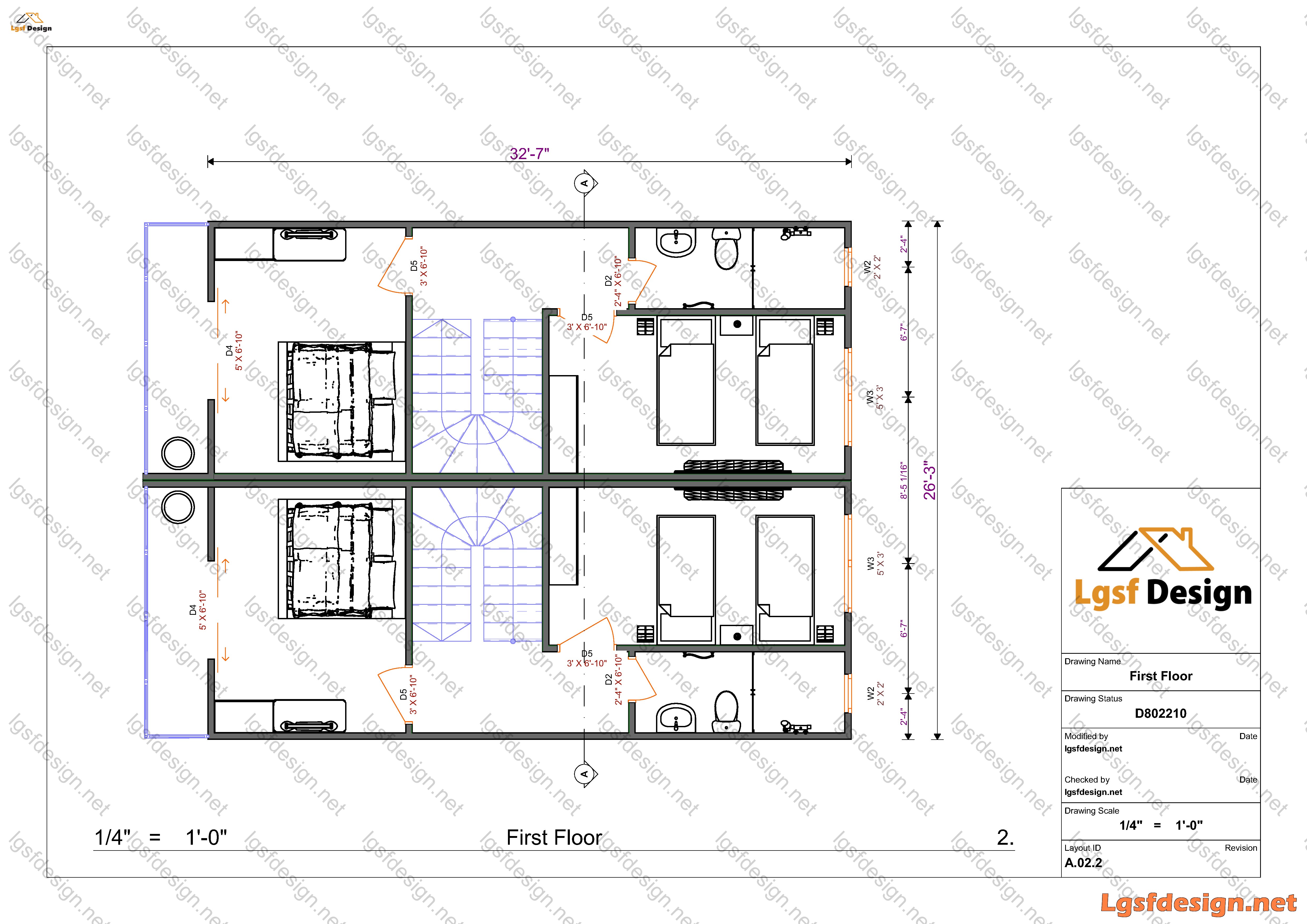

Floor plan
Package options
Start with the full manufacture-ready package, or request individual deliverables.
Best value
Full package
Complete drawings, calculations, CNC files, and BOQ for D1502220.
$ 580
Order NowIndividual deliverables
- Foundation $150
- Architectural Drawings $170
- Complete BOQ $80
- Drawings, calculations & CNC files $180
Technical details
Structural, material, and design-load values for this package.

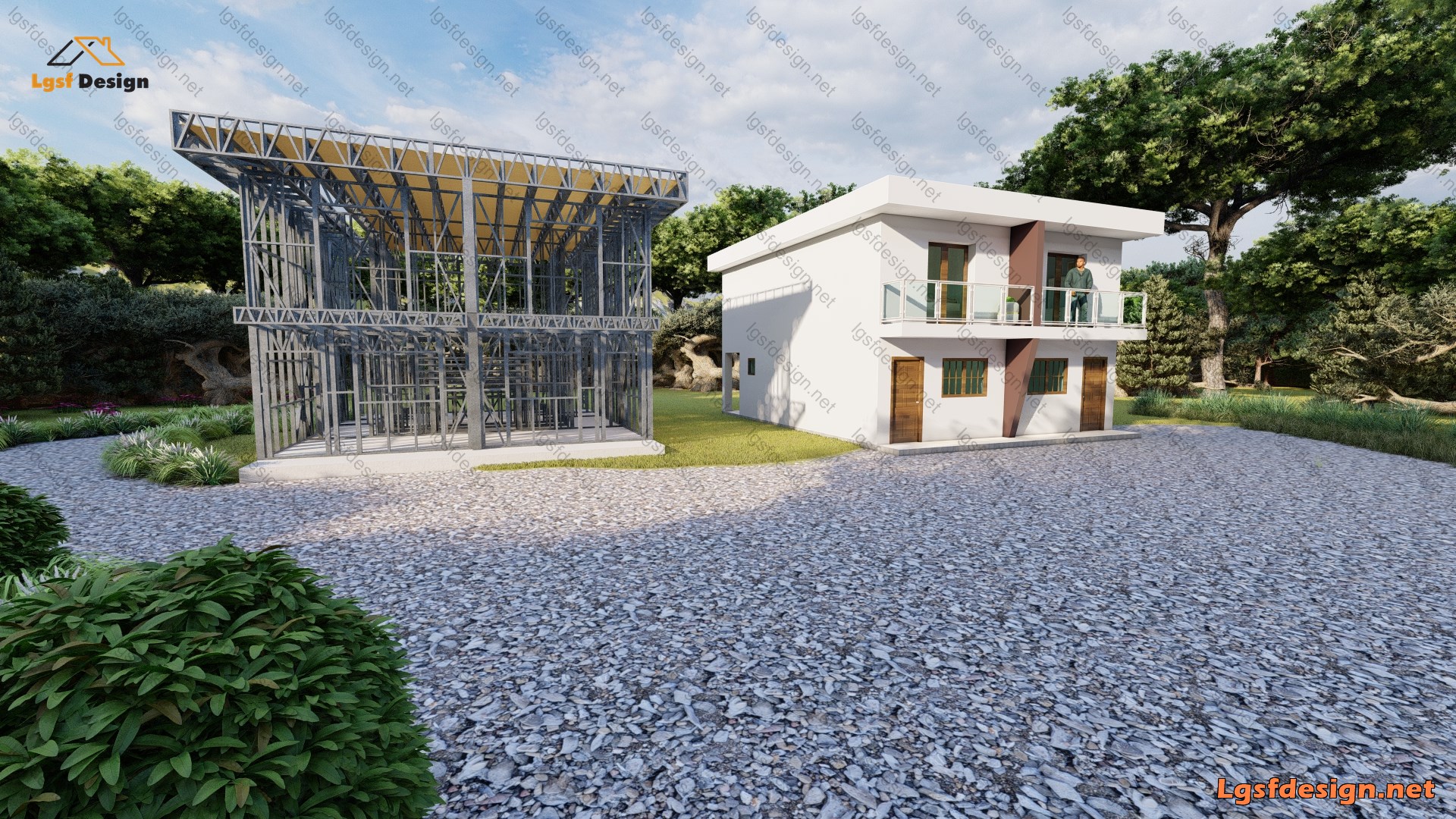

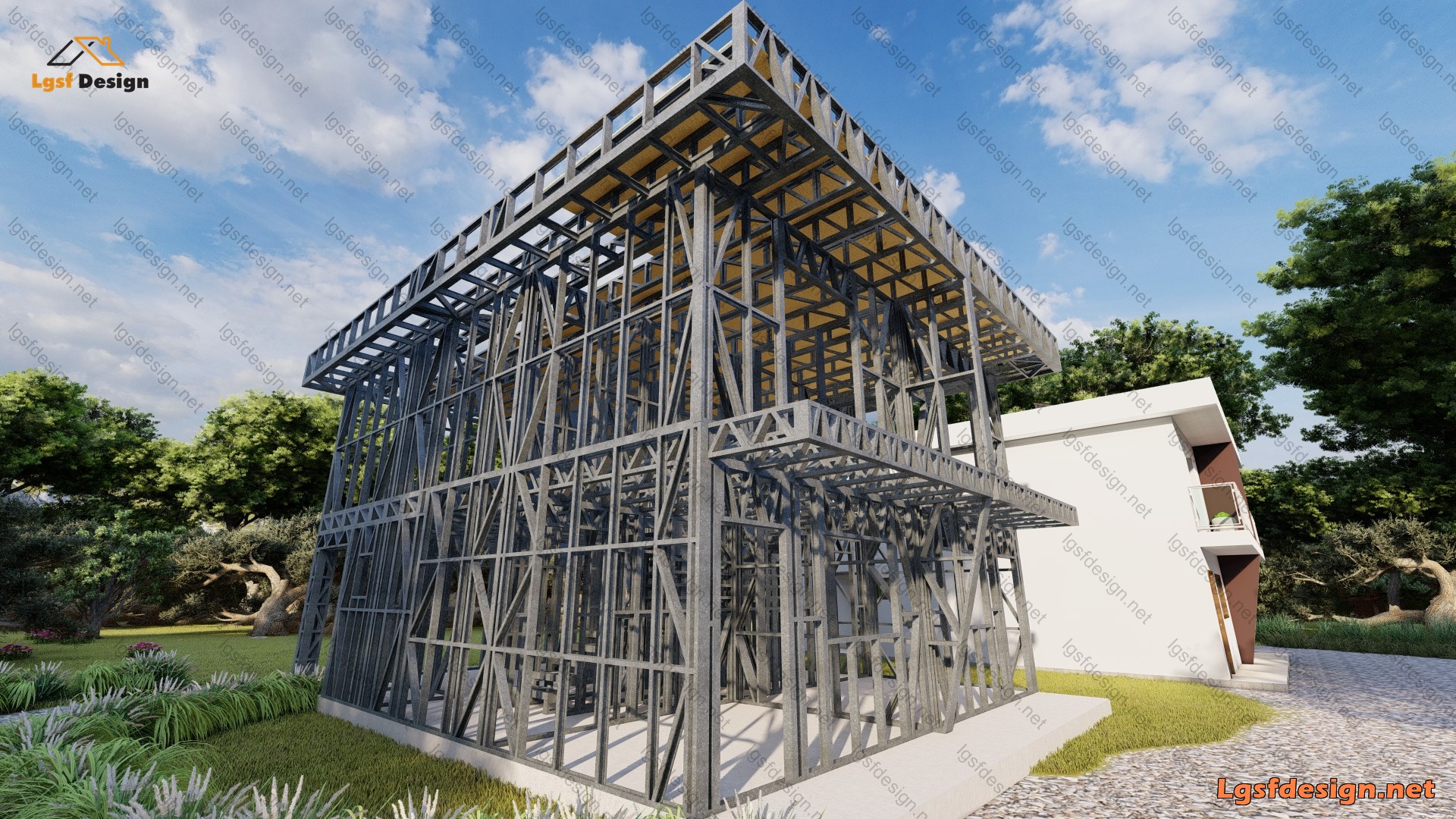

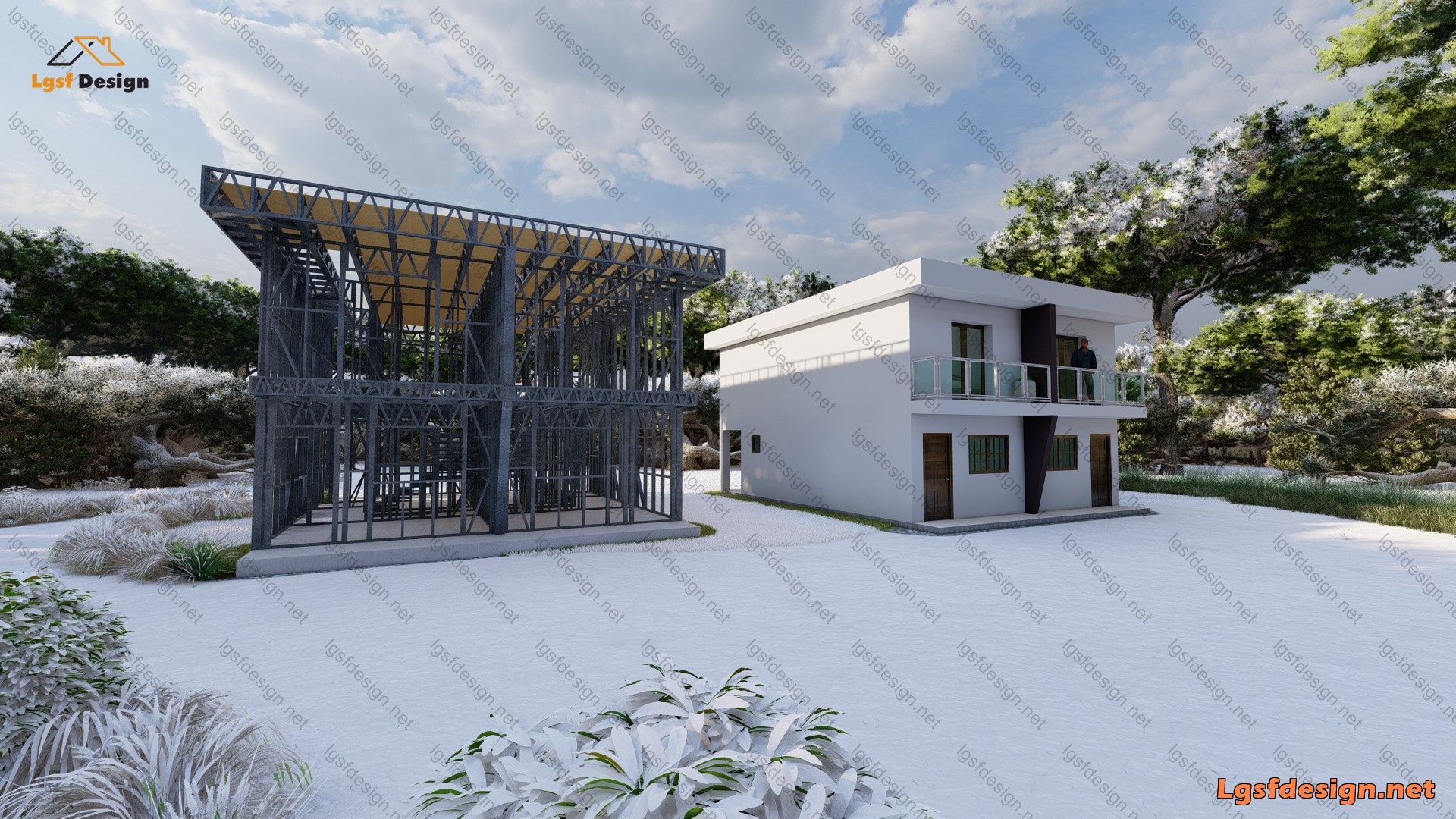

Structure
Weight
6200 kg
Longest member
7.4 m
Materials
- Steel sections
-
- 362S162
Load conditions
Design code
IBC 2021
Snow load
0 kN/m²
Wind velocity
28 m/s
Wind pressure
0.6 kN/m²
Peak ground accel.
0.2 m/s²
Ask about this plan
Have a question about this plan? Send us a message and we'll reply by email, usually within 1–2 business days.
