About this plan
This house plan features a split bedroom design for added privacy. The open layout of the kitchen, dining, and great room is ideal for gatherings, creating a spacious and airy feel. The master bedroom is set apart from the other bedrooms for privacy and includes a large walk-in closet. The master bathroom offers dual sinks, ample storage, and a roomy custom shower. The laundry room is discreetly located off the kitchen and hidden with a sliding barn-style door. Bedrooms 2 and 3 share a well-sized bathroom. The 6-foot deep covered rear porch extends the living space outdoors.

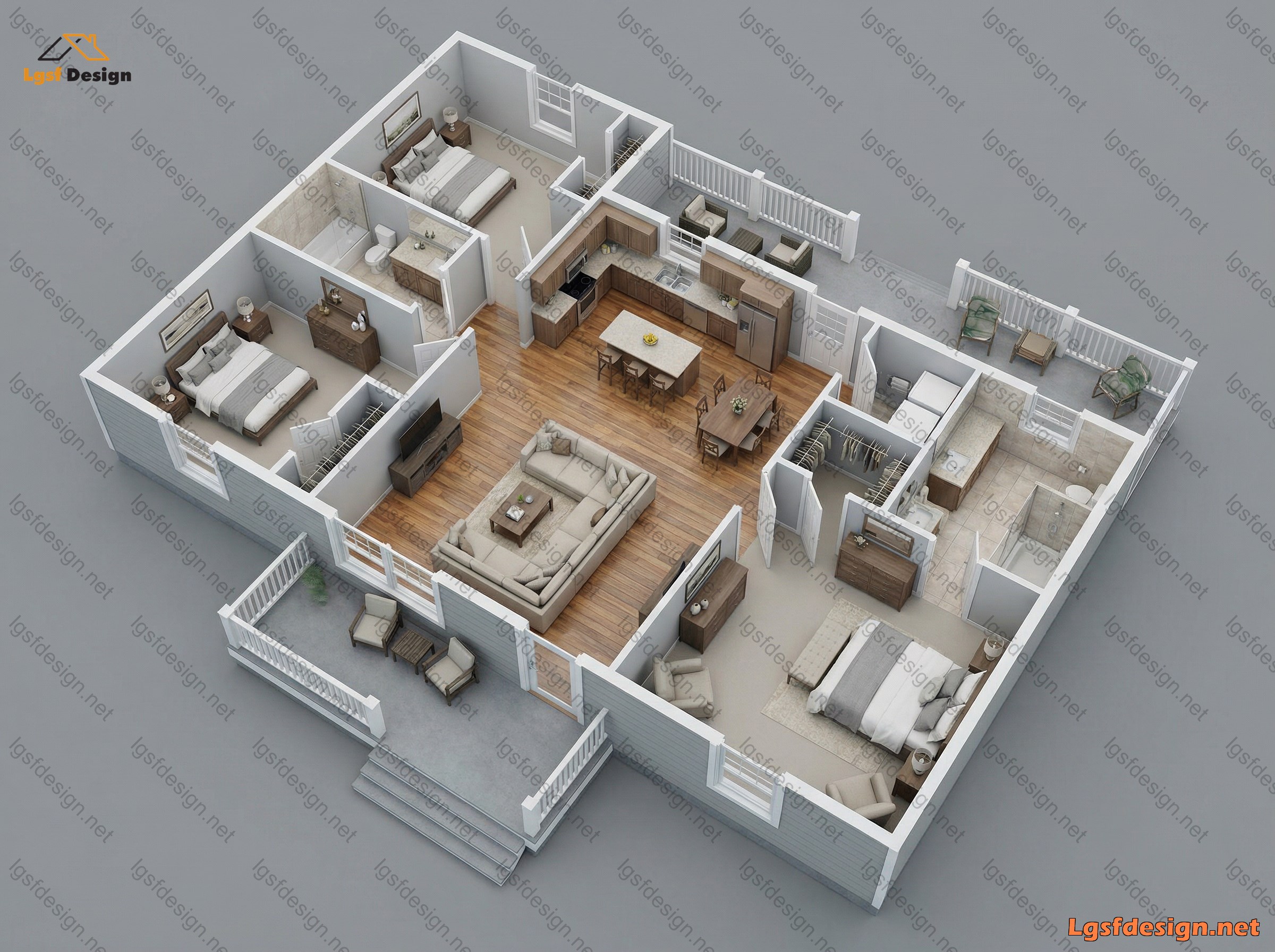

Floor plan
Package options
Start with the full manufacture-ready package, or request individual deliverables.
Best value
Full package
Complete drawings, calculations, CNC files, and BOQ for D131320.
$ 580
Order NowIndividual deliverables
- Foundation $140
- Architectural Drawings $150
- Complete BOQ $80
- Drawings, calculations & CNC files $160
- 3D IFC File $50
Technical details
Structural, material, and design-load values for this package.

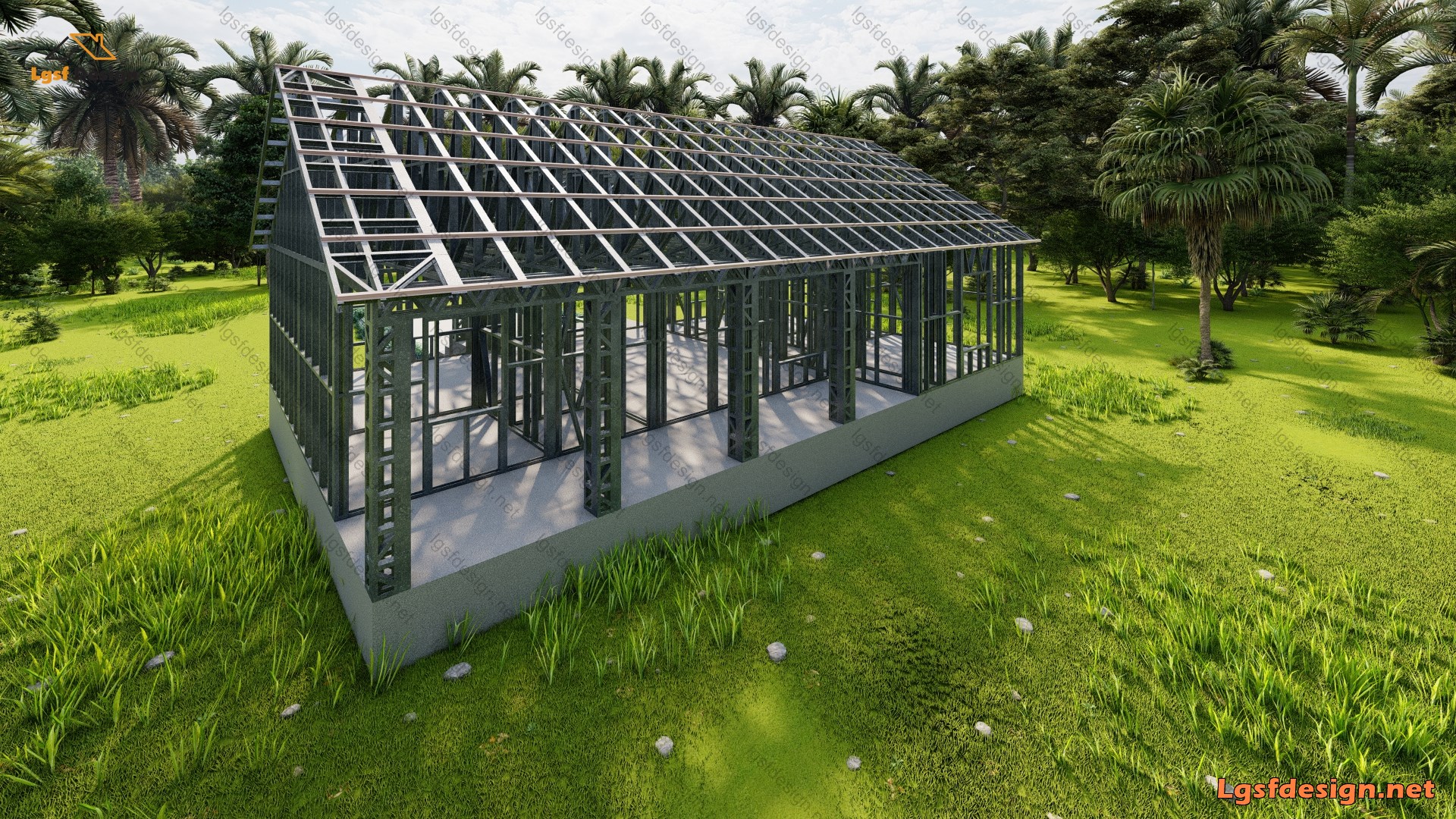

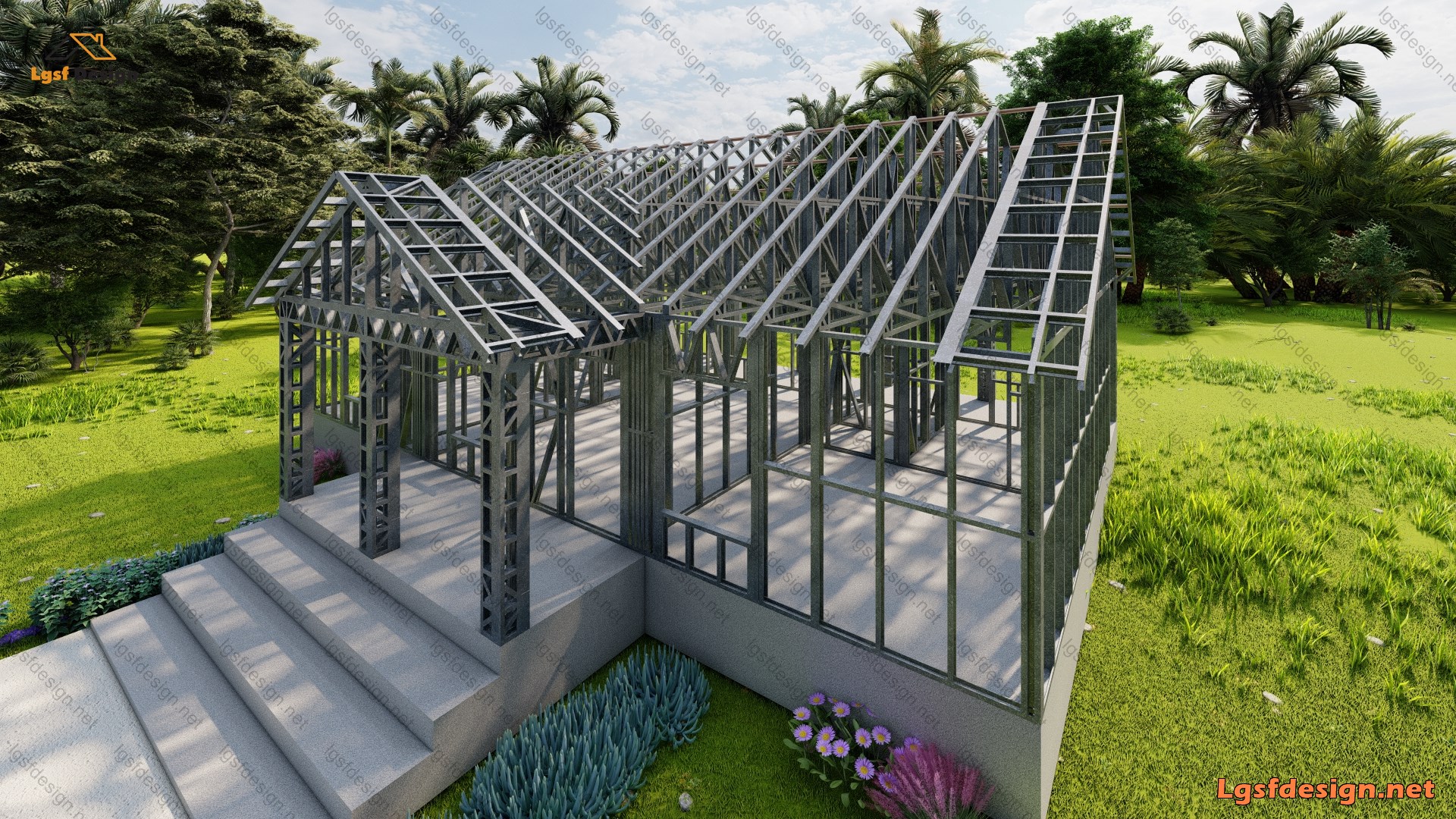

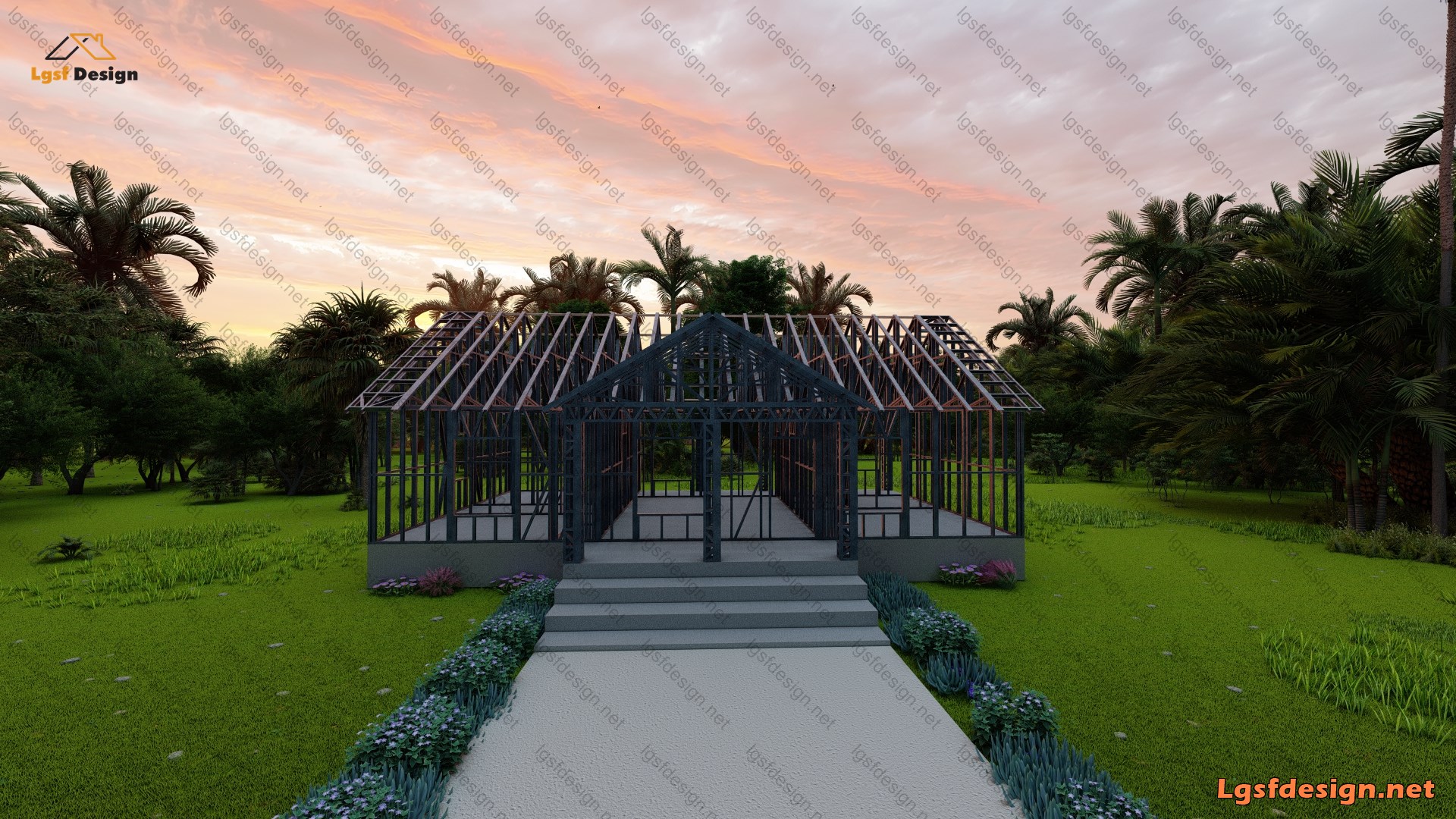

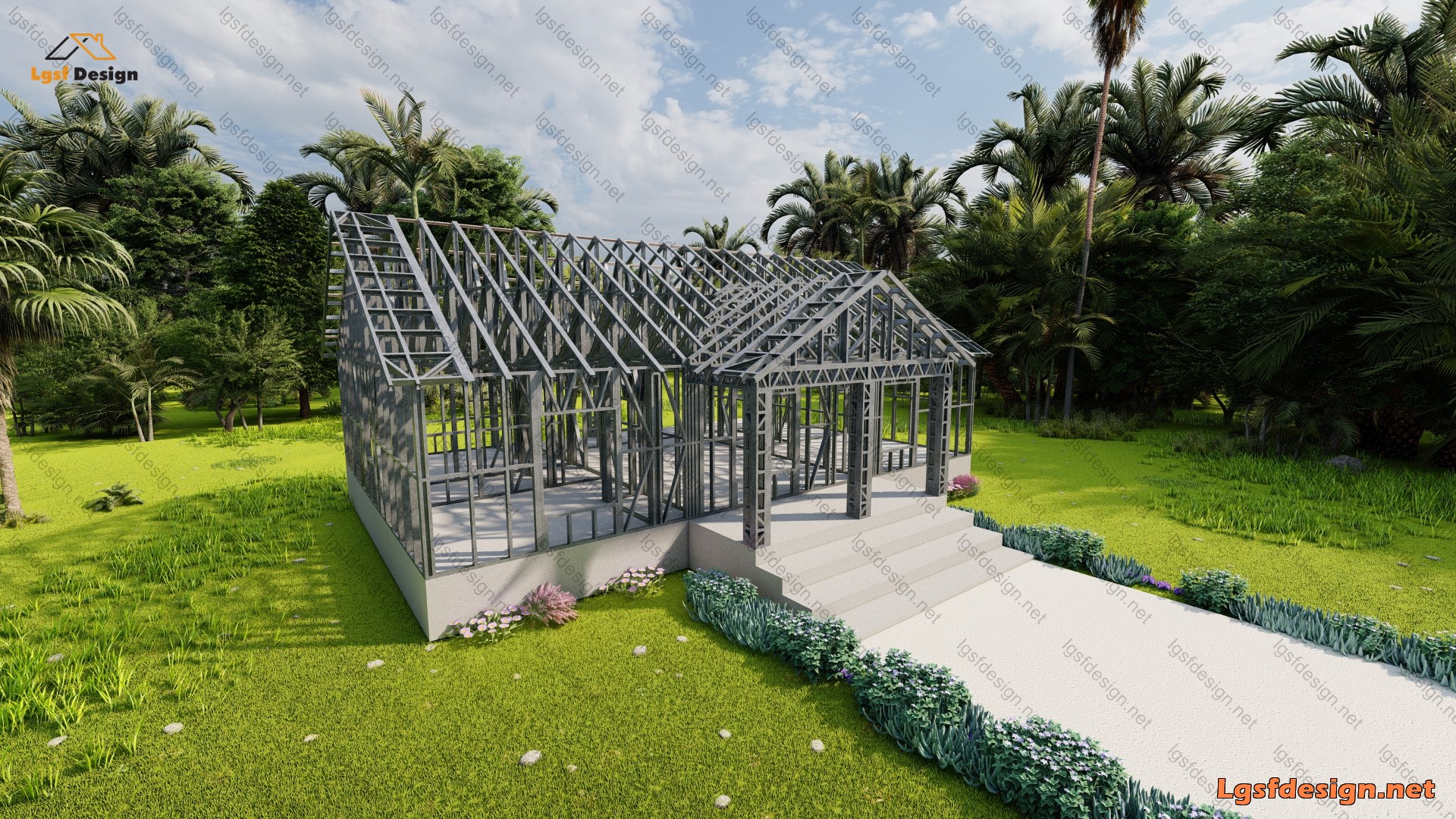

Structure
Weight
4000 kg
Longest member
9 m
Materials
- Steel sections
-
- 362S162
Load conditions
Design code
IBC 2021
Snow load
0.5 kN/m²
Wind velocity
55 m/s
Wind pressure
1.5 kN/m²
Peak ground accel.
0.2 m/s²
